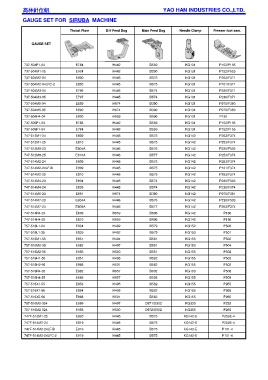

Page 578 - 2017 MASTER CATALOG
P. 578
YAO HAN INDUSTRIES CO.,LTD.
GAUGE SET FOR SIRUBA MACHINE
Throat Plate Diff Feed Dog Main Feed Dog Needle Clamp Presser foot asm.
GAUGE SET
高林針位組 高林針位組 高林針位組 高林針位組
737-504F1-04 E784 H442 D569 KG131 P152/F155
737-504M1-15 E934 H442 D290 KG131 P152/F525
737-504M2-04 E800 H445 D575 KG131 P253/F371
737-504M2-04LFC-2 E800 H445 D575 KG131 P101/F371
737-504M3-04 E796 H445 D574 KG131 P230/F371
737-504M3-05 E797 H445 D574 KG131 P230/F371
737-504M5-04 E589 H974 D390 KG131 P975/F380
737-504M5-05 E590 H974 D390 KG131 P975/F380
737-504H4-04 E800 H959 D996 KG131 P136
737-505F1-03 E783 H442 D569 KG131 P152/F155
737-505F1-04 E784 H442 D569 KG131 P152/F155
747-512M1-24 E809 H445 D575 KG142 P253/F374
747-512M1-25 E810 H445 D575 KG142 P253/F374
747-512M8-23 E804A H446 D576 KG142 P230/F503
747-512M8-25 E810A H446 D577 KG142 P253/F374
747-514M2-24 E809 H445 D575 KG142 P253/F374
747-514M2-24LF-B E809 H445 D575 KG142 P101/F374
747-514M2-25 E810 H445 D575 KG142 P253/F374
747-514M4-23 E804 H445 D574 KG142 P230/F503
747-514M4-24 E805 H445 D574 KG142 P230/F374
747-514M5-23 E591 H974 D390 KG142 P975/F381
747-514M7-23 E804A H446 D576 KG142 P230/F503
747-514M7-24 E809A H446 D577 KG142 P253/F374
747-514H4-24 E809 H959 D996 KG142 P136
747-514H4-25 E810 H959 D996 KG142 P136
757-516L1-24 E834 H492 D579 KG152 P500
757-516L1-35 E839 H492 D579 KG153 P501
757-516M1-55 E851 H494 D581 KG155 P502
757-516M2-35 E982 H497 D581 KG153 P504
757-516M2-55 E986 H500 D581 KG155 P502
757-516H1-55 E851 H495 D582 KG155 P502
757-516H2-56 E868 H501 D582 KG155 P502
757-516H4-35 E982 H957 D002 KG153 P508
757-516H4-55 E986 H957 D003 KG155 P509
757-516X1-55 E853 H495 D582 KG155 P955
757-516X1-56 E854 H495 D582 KG155 P955
757-516X2-56 E868 H501 D582 KG155 P955
767-516M2-324 E989 H497 D971/D502 KG333 P233
767-516M2-524 E988 H500 D972/D502 KG355 P255
747F-512M1-25 E920 H445 D575 KG142-E P253E-4
747F-514M2-24 E919 H445 D575 KG142-E P253E-4
747F-514M2-24LF-B E919 H445 D575 KG142-E P101-4
747F-514M2-24LFC-2 E919 H445 D575 KG142-E P101-4
