Page 579 - 2017 MASTER CATALOG
P. 579
YAO HAN INDUSTRIES CO.,LTD.

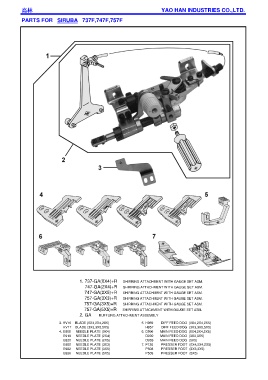

PARTS FOR SIRUBA 737F,747F,757F
高林高林高林高林
1. 737-GA(0X4)+R SHIRRING ATTACHMENT WITH GAUGE SET ASM.
747-GA(2X4)+R SHIRRING ATTACHMENT WITH GAUGE SET ASM.
747-GA(2X5)+R SHIRRING ATTACHMENT WITH GAUGE SET ASM.
757-GA(3X3)+R SHIRRING ATTACHMENT WITH GAUGE SET ASM.
757-GA(3X5)+R SHIRRING ATTACHMENT WITH GAUGE SET ASM.
757-GA(5X5)+R SHIRRING ATTACHMENT WITH GAUGE SET ASM.
2. GA RUFFLING ATTACHMENT ASSEMBLY
3. KV16 BLADE (0X4,2X4,2X5) 5. H959 DIFF FEED DOG (0X4,2X4,2X5)
KV17 BLADE (3X3,3X5,5X5) H957 DIFF FEED DOG (3X3,3X5,5X5)
4. E800 NEEDLE PLATE (0X4) 6. D996 MAIN FEED DOG (0X4,2X4,2X5)
E919 NEEDLE PLATE (2X4) D002 MAIN FEED DOG (3X3,3X5)
E920 NEEDLE PLATE (2X5) D003 MAIN FEED DOG (5X5)
E980 NEEDLE PLATE (3X3) 7. P136 PRESSER FOOT (0X4,2X4,2X5)
E982 NEEDLE PLATE (3X5) P508 PRESSER FOOT (3X3,3X5)
E986 NEEDLE PLATE (5X5) P509 PRESSER FOOT (5X5)
