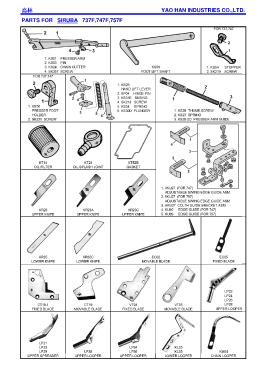

Page 582 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

PARTS FOR SIRUBA 737F,747F,757F

FOR 737,747

1. KS01 PRESSER ARM
2. KS03 PIN
3. KS24 CHAIN CUTTER KS09 1. KS54 STOPPER
4. SK357 SCREW FOOT LIFT SHAFT 2. SK219 SCREW
FOR 737,747
1. KS29
HAND LIFT LEVER
2. SP04 HINGE PIN
3. KS31E BUSING
4. SK213 SCREW
1. KS56 5. KS34 SPRING
PRESSER FOOT 6. KS30D PLUNGER 1. KS28 THUMB SCREW
HOLDER 2. KS27 SPRING
2. SK230 SCREW 3. KS26-2D PRESSER ARM GUIDE

KT14 KT24 KT52B
OIL FILTER OIL SPLASH JOINT GASKET

1. 4KU27 (FOR 747)
ADJUSTABLE SWING EDGE GUIDE ASM.
2. 5KU27 (FOR 757)
ADJUSTABLE SWING EDGE GUIDE ASM.
3. AKU27 COLTH GUIDE BRACKET ASM.
KR23 KR23A KR23C 4. KU40 EDGE GUIDE (FOR 747)
UPPER KNIFE UPPER KNIFE UPPER KNIFE 5. KU39 EDGE GUIDE (FOR 757)
高林高林高林高林

KR35 KR35C EC02 EC05
LOWER KNIFE LOWER KNIFE MOVABLE BLADE FIXED BLADE

LP22
LP24
LP26
CT18-1 CT19 VT04 VT05 LP28
FIXED BLADE MOVABLE BLADE FIXED BLADE MOVABLE BLADE UPPER LOOPER

LP21
LP23 LP34 KL25
LP29 LP38 LP36 KL35 KM04
UPPER SPREADER UPPER LOOPER UPPER LOOPER LOWER LOOPER CHAIN LOOPER
