YAO HAN INDUSTRIES CO.,LTD.

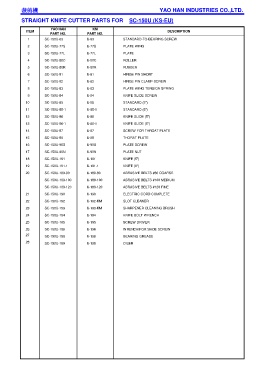

STRAIGHT KNIFE CUTTER PARTS FOR SC-150U (KS-EU)

YAO HAN KM
ITEM DESCRIPTION
PART NO. PART NO.
1 SC-150U-63 U-63 STANDARD-TO-BEARING SCREW
2 SC-150U-77S U-77S PLATE WING
3 SC-150U-77L U-77L PLATE
4 SC-150U-80C U-80C ROLLER
5 SC-150U-80R U-80R RUBBER
6 SC-150U-81 U-81 HINGE PIN SHORT
7 SC-150U-82 U-82 HINGE PIN CLAMP SCREW
8 SC-150U-83 U-83 PLATE WING TENSION SPRING
9 SC-150U-84 U-84 KNIFE SLIDE SCREW
10 SC-150U-85 U-85 STANDARD (5")
11 SC-150U-85-1 U-85-1 STANDARD (6")
12 SC-150U-86 U-86 KNIFE SLIDE (5")
13 SC-150U-86-1 U-86-1 KNIFE SLIDE (6")
14 SC-150U-87 U-87 SCREW FOR THROAT PLATE
15 SC-150U-88 U-88 THORAT PLATE
16 SC-150U-90S U-90S PLATE SCREW
17 SC-150U-90N U-90N PLATE NUT
18 SC-150U-191 U-191 KNIFE (5")
19 SC-150U-191-1 U-191-1 KNIFE (6")
20 SC-150U-189-80 U-189-80 ABRASIVE BELTS #80 COARSE
SC-150U-189-100 U-189-100 ABRASIVE BELTS #100 MEDIUM
SC-150U-189-120 U-189-120 ABRASIVE BELTS #120 FINE
21 SC-150U-190 U-190 ELECTRIC CORD COMPLETE
22 SC-150U-192 U-192-KM SLOT CLEANER
23 SC-150U-193 U-193-KM SHARPENER CLEANING BRUSH
24 SC-150U-194 U-194 KNIFE BOLT WRENCH
裁剪機裁剪機裁剪機裁剪機
25 SC-150U-195 U-195 SCREW DRIVER
26 SC-150U-196 U-196 WRENCH FOR SHOE SCREW
27
SC-150U-198 U-198 BEARING GREASE
28 SC-150U-199 U-199 OILER
