Page 677 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

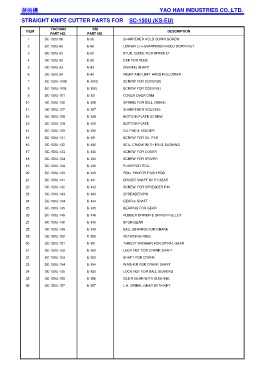

STRAIGHT KNIFE CUTTER PARTS FOR SC-150U (KS-EU)

YAO HAN KM
ITEM DESCRIPTION
PART NO. PART NO.
1 SC-150U-56 U-56 SHARPENER HOLD DOWN SCREW
2 SC-150U-60 U-60 LOWER L.H>SHARPENER HOLD DOWN NUT
3 SC-150U-62 U-62 STUD, GUIDE ROD BRACKET
4 SC-150U-92 U-92 CAP FOR TUBE
5 SC-150U-93 U-93 DRIVING SHAFT
6 SC-150U-94 U-94 RIGHT AND LEFT HAND FOLLOWER
7 SC-150U-100S U-100S SCREW FOR COVER(S)
8 SC-150U-100L U-100L SCREW FOR COVER(L)
9 SC-150U-101 U-101 COVER OVER CAM
10 SC-150U-126 U-126 SPRING FOR BELL CRANK
11 SC-150U-127 U-127 SHARPENER HOUSING
12 SC-150U-128 U-128 BOTTOM PLATE SCREW
13 SC-150U-129 U-129 BOTTOM PLATE
14 SC-150U-130 U-130 OIL PAD & HOLDER
15 SC-150U-131 U-131 SCREW FOR OIL PAD
16 SC-150U-132 U-132 BELL CRANK WITH PIN & BUSHING
17 SC-150U-133 U-133 SCREW FOR COVER
18 SC-150U-134 U-134 SCREW FOR DRIVER
19 SC-150U-139 U-139 PUSH ROD ROLL
20 SC-150U-140 U-140 ROLL PIN FOR PUSH ROD
21 SC-150U-141 U-141 DRIVER SHAFT WITH GEAR
22 SC-150U-142 U-142 SCREW FOR SPREADER PIN
23 SC-150U-143 U-143 SPREADER PIN
24 SC-150U-144 U-144 GEAR & SHAFT
25 SC-150U-145 U-145 BEARING FOR GEAR
26 SC-150U-146 U-146 RUBBER DRIVER & DRIVER PULLEY
裁剪機裁剪機裁剪機裁剪機
27 SC-150U-148 U-148 SPUR GEAR
28 SC-150U-149 U-149 BALL BEARING FOR CRANK
29 SC-150U-150 U-150 RETAINING RING
30 SC-150U-151 U-151 THRUST WASHER FOR SPIRAL GEAR
31 SC-150U-152 U-152 LOCK NUT FOR CRANK SHAFT
32 SC-150U-153 U-153 SHAFT FOR CRANK
33 SC-150U-154 U-154 WASHER FOR CRANK SHAFT
34 SC-150U-155 U-155 LOCK NUT FOR BALL BEARING
35 SC-150U-156 U-156 IDLER GEAR WITH BUSHING
36 SC-150U-157 U-157 L.H. SPIRAL GEAR WITH KEY
