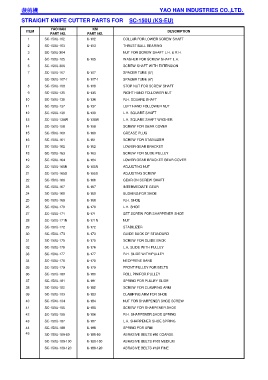

Page 679 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

STRAIGHT KNIFE CUTTER PARTS FOR SC-150U (KS-EU)

YAO HAN KM
ITEM DESCRIPTION
PART NO. PART NO.
1 SC-150U-102 U-102 COLLAR FOR LOWER SCREW SHAFT
2 SC-150U-103 U-103 THRUST BALL BEARING
3 SC-150U-304 NUT FOR SCREW SHAFT L.H. & R.H.
4 SC-150U-105 U-105 WASHER FOR SCREW SHAFT L.H.
5 SC-150U-306 SCREW SHAFT WITH EXTENSION
7 SC-150U-107 U-107 SPACER TUBE (5")
SC-150U-107-1 U-107-1 SPACER TUBE (6")
8 SC-150U-108 U-108 STOP NUT FOR SCREW SHAFT
9 SC-150U-135 U-135 RIGHT HAND FOLLOWER NUT
10 SC-150U-136 U-136 R.H. SQUARE SHAFT
11 SC-150U-137 U-137 LEFT HAND FOLLOWER NUT
12 SC-150U-138 U-138 L.H. SQUARE SHAFT
13 SC-150U-138W U-138W L.H. SQUARE SHAFT WASHER
14 SC-150U-158 U-158 SCREW FOR GEAR COVER
15 SC-150U-160 U-160 GREASE PLUG
16 SC-150U-161 U-161 SCREW FOR STABILIZER
17 SC-150U-162 U-162 LOWER GEAR BRACKET
18 SC-150U-163 U-163 SCREW FOR SLIDE PULLEY
19 SC-150U-164 U-164 LOWER GEAR BRACKET GEAR COVER
20 SC-150U-165N U-165N ADJUSTING NUT
21 SC-150U-165S U-165S ADJUSTING SCREW
22 SC-150U-166 U-166 GEAR ON SCREW SHAFT
23 SC-150U-167 U-167 INTERMEDIATE GEAR
24 SC-150U-168 U-168 BUSHING FOR SHOE
25 SC-150U-169 U-169 R.H. SHOE
26 SC-150U-170 U-170 L.H. SHOE
27 SC-150U-171 U-171 SET SCREW FOR SHARPENER SHOE
28 SC-150U-171N U-171N NUT
裁剪機裁剪機裁剪機裁剪機
29 SC-150U-172 U-172 STABILIZER
30 SC-150U-173 U-173 GUIDE BACK OF STANDARD
31 SC-150U-175 U-175 SCREW FOR GUIDE BACK
32 SC-150U-176 U-176 L.H. SLIDE WITH PULLEY
33 SC-150U-177 U-177 R.H. SLIDE WITH PULLEY
34 SC-150U-178 U-178 NEOPRENE BAND
35 SC-150U-179 U-179 FRONT PULLEY FOR BELTS
36 SC-150U-180 U-180 ROLL PIN FOR PULLEY
37 SC-150U-181 U-181 SPRING FOR PULLEY SLIDE
38 SC-150U-182 U-182 SCREW FOR CLAMPING ARM
39 SC-150U-183 U-183 CLAMPING ARM FOR SHOE
40 SC-150U-184 U-184 NUT FOR SHARPENER SHOE SCREW
41 SC-150U-185 U-185 SCREW FOR SHARPENER SHOE
42 SC-150U-186 U-186 R.H. SHARPENER SHOE SPRING
43 SC-150U-187 U-187 L.H. SHARPENER SHOE SPRING
44 SC-150U-188 U-188 SPRING FOR ARM
45 SC-150U-189-80 U-189-80 ABRASIVE BELTS #80 COARSE
SC-150U-189-100 U-189-100 ABRASIVE BELTS #100 MEDIUM
SC-150U-189-120 U-189-120 ABRASIVE BELTS #120 FINE
