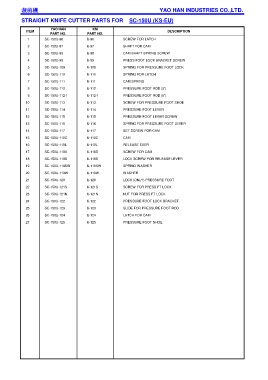

STRAIGHT KNIFE CUTTER PARTS FOR SC-150U (KS-EU)

YAO HAN KM
ITEM DESCRIPTION
PART NO. PART NO.
1 SC-150U-96 U-96 SCREW FOR LATCH
2 SC-150U-97 U-97 SHAFT FOR CAM
3 SC-150U-98 U-98 CAM SHAFT SPRING SCREW
4 SC-150U-99 U-99 PRESS FOOT LOCK BRACKET SCREW
5 SC-150U-109 U-109 SPRING FOR PRESSURE FOOT LOCK
6 SC-150U-110 U-110 SPRING FOR LATCH
7 SC-150U-111 U-111 CAM SPRING
8 SC-150U-112 U-112 PRESSURE FOOT ROD (5")
9 SC-150U-112-1 U-112-1 PRESSURE FOOT ROD (6")
10 SC-150U-113 U-113 SCREW FOR PRESSURE FOOT SHOE
11 SC-150U-114 U-114 PRESSURE FOOT LEVER
12 SC-150U-115 U-115 PRESSURE FOOT LEVER SCREW
13 SC-150U-116 U-116 SPRING FOR PRESSURE FOOT LEVER
14 SC-150U-117 U-117 SET SCREW FOR CAM
15 SC-150U-118C U-118C CAM
16 SC-150U-118L U-118L RELEASE EVER
17 SC-150U-118S U-118S SCREW FOR CAM
18 SC-150U-119S U-119S LOCK SCREW FOR RELEASE LEVER
19 SC-150U-119SW U-119SW SPRING WASHER
20 SC-150U-119W U-119W WASHER
21 SC-150U-120 U-120 LOCK (ONLY) PRESSURE FOOT
22 SC-150U-121S U-121S SCREW FOR PRESS FT LOCK
23 SC-150U-121N U-121N NUT FOR PRESS FT LOCK
24 SC-150U-122 U-122 PRESSURE FOOT LOCK BRACKET
25 SC-150U-123 U-123 SLIDE FOR PRESSURE FOOT ROD
26 SC-150U-124 U-124 LATCH FOR CAM
裁剪機裁剪機裁剪機裁剪機
27 SC-150U-125 U-125 PRESSURE FOOT SHOE
