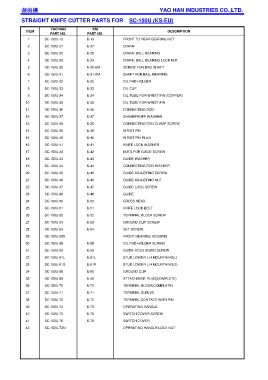

Page 673 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

STRAIGHT KNIFE CUTTER PARTS FOR SC-150U (KS-EU)

YAO HAN KM
ITEM DESCRIPTION
PART NO. PART NO.
1 SC-150U-13 U-13 FRONT TO REAR BEARING NUT
2 SC-150U-27 U-27 CRANK
3 SC-150U-28 U-28 CRANK BALL BEARING
4 SC-150U-29 U-29 CRANK BALL BEARING LOCK NUT
5 SC-150U-30 U-30-KM SCREW FOR BRG SHAFT
6 SC-150U-31 U-31-KM SHAFT FOR BALL BEARING
7 SC-150U-32 U-32 OIL PAD HOLDER
8 SC-150U-33 U-33 OIL CUP
9 SC-150U-34 U-34 OIL TUBE FOR WRIST PIN (COPPER)
10 SC-150U-35 U-35 OIL TUBE FOR WRIST PIN
11 SC-150U-36 U-36 CONNECTING ROD
12 SC-150U-37 U-37 SHAKEPROFF WASHER
13 SC-150U-38 U-38 CONNECTING ROD CLAMP SCREW
14 SC-150U-39 U-39 WRIST PIN
15 SC-150U-40 U-40 WRIST PIN PLUG
16 SC-150U-41 U-41 KNIFE LOCK WASHER
17 SC-150U-42 U-42 NUTS FOR GUIDE SCREW
18 SC-150U-43 U-43 GUIDE WASHER
19 SC-150U-44 U-44 CONNECTING ROD WASHER
20 SC-150U-45 U-45 GUIDE ADJUSTING SCREW
21 SC-150U-46 U-46 GUIDE ADJUSTING NUT
22 SC-150U-47 U-47 GUIDE LOCK SCREW
23 SC-150U-48 U-48 GUIDE
24 SC-150U-50 U-50 CROSS HEAD
25 SC-150U-51 U-51 KNIFE LOCK BOLT
26 SC-150U-52 U-52 TERMINAL BLOCK SCREW
裁剪機裁剪機裁剪機裁剪機
27 SC-150U-53 U-53 GROUND CLIP SCREW
28 SC-150U-54 U-54 SET SCREW
29 SC-150U-255 FRONT BEARING HOUSING
30 SC-150U-58 U-58 OIL PAD HOLDER SCREW
31 SC-150U-59 U-59 GUIDE HOLD DOWN SCREW
32 SC-150U-61L U-61L STUD LOWER L.H.MOUNTAING(L)
33 SC-150U-61S U-61R STUD LOWER L.H.MOUNTAING(S)
34 SC-150U-66 U-66 GROUND CLIP
35 SC-150U-69 U-69 ATTACHMENT PLUG(COMPLETE)
36 SC-150U-70 U-70 TERMINAL BLOCK(COMPLETE)
37 SC-150U-71 U-71 TERMINAL SLEEVE
38 SC-150U-72 U-72 TERMINAL CONTACT WITH PIN
39 SC-150U-73 U-73 OPERATING HANDLE
40 SC-150U-75 U-75 SWITCH COVER SCREW
41 SC-150U-76 U-76 SWITCH COVER
42 SC-150U-73N OPERATING HANDLE LOCK NUT
