Page 668 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

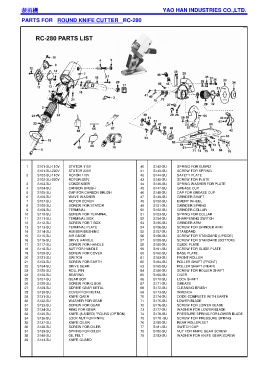

PARTS FOR ROUND KNIFE CUTTER RC-280

1 S101-SU-110V STATOR 110V 40 S142-SU SPRING FOR GUARD
S101-SU-220V STATOR 220V 41 S143-SU SCREW FOR SPRING
2 S102-SU-110V ROTOR 110V 42 S144-SU SAFETY PLATE
S102-SU-220V ROTOR 220V 43 S145-SU SCREW FOR PLATE
3 S103-SU CONDENSER 44 S146-SU SPRING WASHER FOR PLATE
4 S104-SU CARBON BRUSH 45 S147-SU GREASE CUP
5 S105-SU CAP FOR CARBON BRUSH 46 S148-SU CAP FOR GREASE CUP
6 S106-SU WAVE WASHER 47 S149-SU GRINDER SHAFT
7 S107-SU MOTOR COVER 48 S150-SU EMERY WHEEL
8 S108-SU SCREW FOR STATOR 49 S151-SU GRINDER SPRING
9 S109-SU TERMINAL 50 S152-SU GRINDER COLLAR
10 S110-SU SCREW FOR TERMINAL 51 S153-SU SPRING FOR COLLAR
11 S111-SU TERMINAL BOX 52 S154-SU SHARPENING SWITCH
裁剪機裁剪機裁剪機裁剪機
12 S112-SU SCREW FOR T.BOX 53 S155-SU GRINDER ARM
13 S113-SU TERMINAL PLATE 54 S156-SU SCREW FOR GRINDER ARM
14 S114-SU RUBBER BUSHING 55 S157-SU STANDARD
15 S115-SU AIR GUIDE 56 S158-SU SCREW FOR STANDARD (UPSIDE)
16 S116-SU DRIVE HANDLE 57 S159-SU SCREW FOR STANDARD (BOTTOM)
17 S117-SU SCREW FOR HANDLE 58 S160-SU GUIDE PLATE
18 S118-SU NUT FOR HANDLE 59 S161-SU SCREW FOR GUIDE PLATE
19 S120-SU SCREW FOR COVER 60 S162-SU BASE PLATE
20 S121-SU SWITCH 61 S163-SU FRONT ROLLER
21 S123-SU SCREW FOR EARTH 62 S164-SU ROLLER SHAFT (FRONT)
22 S124-SU DRIVE GEAR 63 S165-SU ROLLER SHAFT (REAR)
23 S125-SU ROLL PIN 64 S166-SU SCREW FOR ROLLER SHAFT
24 S126-SU BEARING 65 S169-SU OILER
25 S127-SU GEAR BOX 66 S170-SU LOCK SHAFT
26 S128-SU SCREW FOR G.BOX 67 S171-SU GREASE
27 S129-SU DDRIVE GEAR METAL 68 S172-SU CLEANING BRUSH
28 S130-SU COVER FOR METAL 69 S173-SU WRENCH
29 S131-SU KNIFE GAER 70 S174-SU CODE COMPLETE WITH EARTH
30 S132-SU WASHER FOR GEAR 71 S175-SU LOWER BLADE
31 S133-SU SCREW FOR GEAR 72 S176-SU SCREW FOR LOWER BLADE
32 S134-SU RING FOR GEAR 73 S177-SU WASHER FOR LOWER BLADE
33 S135-SU KNIFE (8-SIDED) *ROUND (OPTION) 74 S178-SU PRESSURE SPRING FOR LOWER BLADE
34 S136-SU LOCK NUT FOR KNIFE 75 S179 -SU SCREW FOR PRESSURE SPRING
35 S137-SU KNIFE OILER 76 S180-SU REAR ROLLER SET
36 S138-SU SCREW FOR OILER 77 S181-SU SWITCH CAP
37 S139-SU SPRING FOR OILER 78 S182-SU NUT FOR KNIFE GEAR SCREW
38 S140-SU OIL FELT 79 S183-SU WASHER FOR KNIFE GEAR SCREW
39 S141-SU KNIFE GUARD
