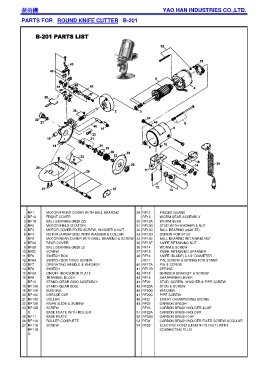

PARTS FOR ROUND KNIFE CUTTER B-201

RF1 MOTOR FRONT COVER WITH BALL BEARING 28 RF12 FINGER GUARD
2 RF1A FRONT COVER RF13 WORM GEAR ASSEMBLY
裁剪機裁剪機裁剪機裁剪機
3 RF1B BALL BEARING (#626 ZZ) 30 RF13A WORM GEAR
4 RF2 MOTOR FIELD (STATOR) 31 RF13B STUD WITH WASHER & NUT
5 RF3 MOTOR COVER FIXED SCREW, WASHER & NUT 32 RF13C BALL BEARING (#626 ZZ)
6 RF4 ROTOR (ARMATURE) WITH WASHER & COLLAR 33 RF13D SCREW FOR STUD
RF5 MOTOR REAR COVER WITH BALL BEARING & SCREW 34 RF13E BALL BEARING RETAINING NUT
8 RF5A REAR COVER 35 RF13F KNIFE RETAINING NUT
9 RF5B BALL BEARING (#626 zz) 36 RF14 WORM & SCREW
10 RF5C SCREW 37 RF15 KNIFE RETAINING SPANNER
11 RF6 SWITCH BOX 38 RF16 KNIFE (BLADE) 3-1/2" DIAMETER
12 RF6A SWITCH BOX FIXED SCREW RF17 PIN, SCREW & SPRING FOR STAND
13 RF7 OPERATING HANDLE & WASHER 40 RF17A PIN & SCREW
14 RF8 SWITCH 41 RF17B SPRING
15 RF8A ON/OFF INDICATION PLATE 42 RF18 GRINDER BRACKET & SCREW
16 RF9 TERMINAL BLOCK 43 RF19 SHARPENER LEVER
RF10 STAND (GEAR GOX) ASSEMBLY 44 RF20 STUD, SCREW, WASHER & PIPE SCREW
18 RF10A STAND (GEAR BOX) 45 RF20A STUD & SCREW
19 RF10B BUSHING 46 RF20B WASHER
20 RF10C GREASE CAP 47 RF20C PIPE SCREW
21 RF10D COLLAR 48 RF21 EMERY (SHARPENING STONE)
22 RF10E KNIFE SLIDE & SCREW 49 RF22 CARBON BRUSH
23 RF10B SCREW RF23 CARBON BRUSH HOLDER &CAP
S BASE PLATE WITH ROLLER 51 RF23A CARBON BRUSH HOLDER
25 RF11 BASE PLATE 52 RF23B CARBON BRUSH CAP
26 RF11A ROLLER COMPLETE 53 RF24 CARBON BRUSH HOLDER FIXED SCREW &COLLAR
27 RF11B SCREW 54 RF25 ELECTRIC CORD (LENGTH 10 FEET) WITH
RF11B CONNECTING PLUG
