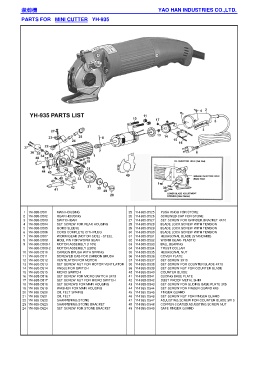

PARTS FOR MINI CUTTER YH-935

1 YH-935-D501 MAIN HOUSING 25 YH-935-D525 PUSH KNOB FOR STORE
2 YH-935-D502 REAR HOUSING 26 YH-935-D526 SCREWED CAP FOR STONE
3 YH-935-D503 SWITCH BAR 27 YH-935-D527 SET SCREW FOR GRINDER BRACKET 4X10
4 YH-935-D504 SET SCREW FOR REAR HOUSING 28 YH-935-D528 BLADE LOCK SCREW WITH TENSION
5 YH-935-D505 GORD SLEEVE 29 YH-935-D529 BLADE LOCK SCREW WITH TENSION
6 YH-935-D506 CORD COMPLETE CITH PLUG 30 YH-935-D530 BLADE LOCK SCREW WITH TENSION
7 YH-935-D507 WORM GEAR (MOTOR SIDE) - STEEL 31 YH-935-D531 HEXAGONAL BLADE (STANDARD)
8 YH-935-D508 HOLL PIN FOR WORM GEAR 32 YH-935-D532 WORM GEAR- PLASTIC
9 YH-935-D509-1 MOTOR ASSEMBLY (110V) 33 YH-935-D533 BALL BEARING
YH-935-D509-2 MOTOR ASSEMBLY (220V) 34 YH-935-D534 TRUST COLLAR
10 YH-935-D510 CARBON BRUSH WITH SPRING 35 YH-935-D535 HEXAGONAL NUT
11 YH-935-D511 SCREWED CAB FOR CARBON BRUSH 36 YH-935-D536 COVER PLATE
12 YH-935-D512 VENTILATOR FOR MOTOR 37 YH-935-D537 SET SCREW 3X10
13 YH-935-D513 SET SCREW NUT FOR MOTOR VENTILATOR 38 YH-935-D538 SET SCREW FOR COUNTER BLADE 4X10
14 YH-935-D514 ANGLE FOR SWITCH 39 YH-935-D539 SET SCREW NUT FOR COUNTER BLADE
15 YH-935-D515 MICRO SWITCH 40 YH-935-D540 COUNTER BLADE
16 YH-935-D516 SET SCREW FOR MICRO SWITCH 3X15 41 YH-935-D541 SLIDING BASE PLATE
17 YH-935-D517 SET SCREW NUT FOR MICRO SWITCH 42 YH-935-D542 DUST PROOF METAL SHIM
18 YH-935-D518 SET SCREWS FOR MAIN HOUSING 43 YH-935-D543 SET SCREW FOR SLIDING BASE PLATE 3X5
19 YH-935-D519 WASHER FOR MAIN HOUSING 44 YH-935-D544 SET SCREW FOR FINGER GUARD 4X6
20 YH-935-D520 OIL FELT SPRING 45 YH-935-D545 FINGER GUARD
21 YH-935-D521 OIL FELT 46 YH-935-D546 SET SCREW NUT FOR FINGER GUARD
22 YH-935-D522 SHARPENING STONE 47 YH-935-D547 ADJUSTING SCREW FOR COUNTER BLADE 3X10
23 YH-935-D523 SHARPENING STONE BRACKET 48 YH-935-D548 COPPER COATED ADJUSTING SCREW NUT
24 YH-935-D524 SET SCREW FOR STONE BRACKET 49 YH-935-D549 SAFE FINGER GUARD
