Page 664 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

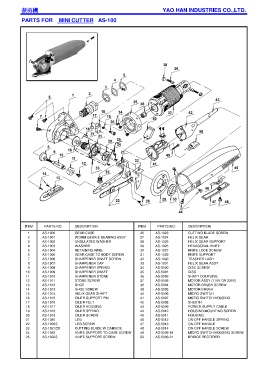

PARTS FOR MINI CUTTER AS-100

裁剪機裁剪機裁剪機裁剪機
ITEM PARTS NO: DESCRIPTION ITEM PARTS NO: DESCRIPTION
1 AS-1000 GEAR CASE 26 AS-1023 CUTTING BLADE SCREW
2 AS-1001 WORM GEAR & BEARING ASSY 27 AS-1024 HELIX GEAR
3 AS-1002 UNDULATED WASHER 28 AS-1025 HELIX GEAR SUPPORT
4 AS-1003 WASHER 29 AS-1026 HEXAGONAL KNIFE
5 AS-1004 RETAINING RING 30 AS-1027 KNIFE LOCK SCREW
6 AS-1005 GEAR CASE TO BODY SCREW 31 AS-1029 KNIFE SUPPORT
7 AS-1006 SHARPENER SHAFT SCREW 32 AS-1030 TEACHER LASH
8 AS-1007 SHARPENER CAP 33 AS-1031 HELIX GEAR ASSY
9 AS-1008 SHARPENER SPRING 34 AS-5000 DISC SCREW
10 AS-1009 SHARPENER SHAFT 35 AS-5001 DISC
11 AS-1010 SHARPENER STONE 36 AS-5002 SHAFT COUPLING
12 AS-1011 STONE SCREW 37 AS-5003 MOTOR ASSY (110V OR 220V)
13 AS-1012 SHOE 38 AS-5004 MOTOR BRUSH SCREW
14 AS-1013 SHOE SCREW 39 AS-5005 MOTOR BRUSH
15 AS-1014 HELIX GEAR SHAFT 40 AS-5006 MICRO SWITCH
16 AS-1015 OILER SUPPORT PIN 41 AS-5007 MICRO SWITCH HOUSING
17 AS-1016 OILER FELT 42 AS-5008 SHEATH
18 AS-1017 OILER HOUSING 43 AS-5009 POWER SUPPLY CABLE
19 AS-1018 OILER SPRING 44 AS-5010 HOUSING MOUNTING SCREW
20 AS-1019 OILER SCREW 45 AS-5011 HOUSING
21 AS-1020 LEG 46 AS-5012 ON-OFF HANDLE SPRING
22 AS-1020S LEG SCREW 47 AS-5013 ON-OFF HANDLE
23 AS-1021/28 CUTTING BLADE W CARBIDE 48 AS-5014 ON-OFF HANDLE SCREW
24 AS-1022 KNIFE SUPPORT TO CASE SCREW 49 AS-5003-18 MICRO SWITCH HOUSING SCREW
25 AS-1022S KNIFE SUPPORT SCREW 50 AS-5003-21 BRIDGE RECTIFIER
