Page 111 - EOSedge installation Documents

EOS 90446-A-PHY-0011-X-ray chain setting (polynome, PDS,…).docx

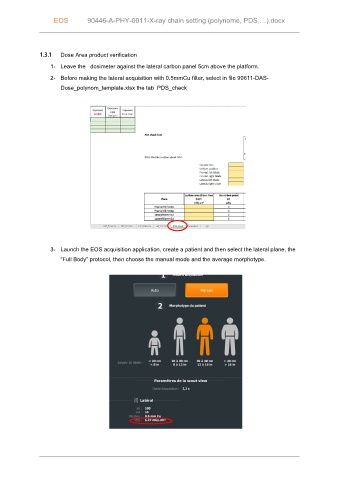

1.3.1 Dose Area product verification

1- Leave the dosimeter against the lateral carbon panel 5cm above the platform.
2- Before making the lateral acquisition with 0.5mmCu filter, select in file 90611-DAS-
Dose_polynom_template.xlsx the tab PDS_check

3- Launch the EOS acquisition application, create a patient and then select the lateral plane, the
“Full Body” protocol, then choose the manual mode and the average morphotype.
