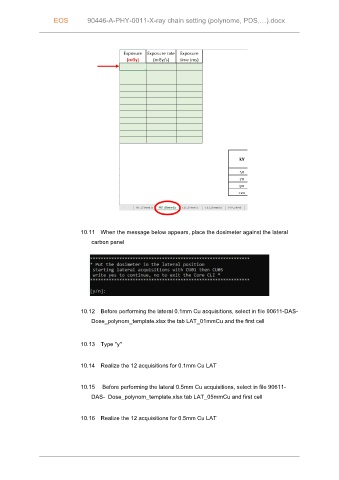

EOS 90446-A-PHY-0011-X-ray chain setting (polynome, PDS,…).docx

10.11 When the message below appears, place the dosimeter against the lateral
carbon panel

10.12 Before performing the lateral 0.1mm Cu acquisitions, select in file 90611-DAS-

Dose_polynom_template.xlsx the tab LAT_01mmCu and the first cell

10.13 Type "y"

10.14 Realize the 12 acquisitions for 0.1mm Cu LAT

10.15 Before performing the lateral 0.5mm Cu acquisitions, select in file 90611-
DAS- Dose_polynom_template.xlsx tab LAT_05mmCu and first cell

10.16 Realize the 12 acquisitions for 0.5mm Cu LAT
