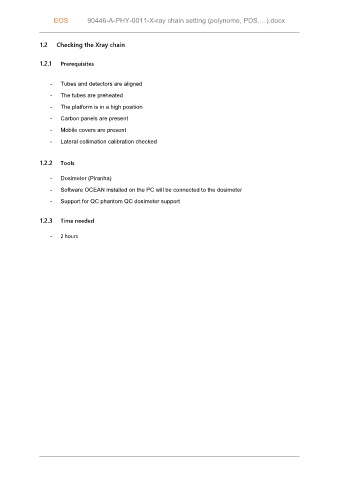

Page 105 - EOSedge installation Documents

EOS 90446-A-PHY-0011-X-ray chain setting (polynome, PDS,…).docx

1.2 Checking the Xray chain

1.2.1 Prerequisites

- Tubes and detectors are aligned
- The tubes are preheated

- The platform is in a high position
- Carbon panels are present

- Mobile covers are present
- Lateral collimation calibration checked

1.2.2 Tools

- Dosimeter (Piranha)

- Software OCEAN installed on the PC will be connected to the dosimeter
- Support for QC phantom QC dosimeter support

1.2.3 Time needed

- 2 hours
