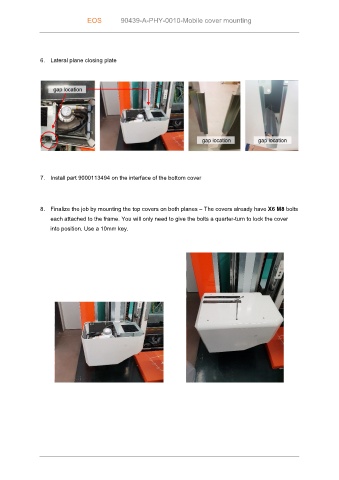

EOS 90439-A-PHY-0010-Mobile cover mounting

6. Lateral plane closing plate

7. Install part 9000113494 on the interface of the bottom cover

8. Finalize the job by mounting the top covers on both planes – The covers already have X6 M8 bolts
each attached to the frame. You will only need to give the bolts a quarter-turn to lock the cover
into position. Use a 10mm key.
