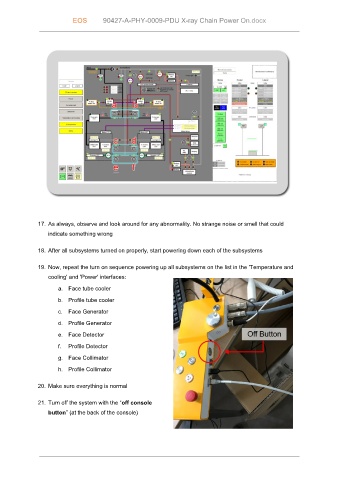

EOS 90427-A-PHY-0009-PDU X-ray Chain Power On.docx

17. As always, observe and look around for any abnormality. No strange noise or smell that could
indicate something wrong

18. After all subsystems turned on properly, start powering down each of the subsystems

19. Now, repeat the turn on sequence powering up all subsystems on the list in the 'Temperature and
cooling' and 'Power' interfaces:
a. Face tube cooler

b. Profile tube cooler

c. Face Generator
d. Profile Generator
e. Face Detector

f. Profile Detector

g. Face Collimator
h. Profile Collimator

20. Make sure everything is normal

21. Turn off the system with the “off console

button” (at the back of the console)
