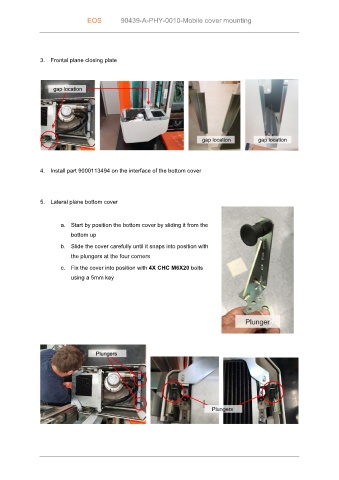

EOS 90439-A-PHY-0010-Mobile cover mounting

3. Frontal plane closing plate

4. Install part 9000113494 on the interface of the bottom cover

5. Lateral plane bottom cover

a. Start by position the bottom cover by sliding it from the

bottom up
b. Slide the cover carefully until it snaps into position with
the plungers at the four corners

c. Fix the cover into position with 4X CHC M6X20 bolts
using a 5mm key
