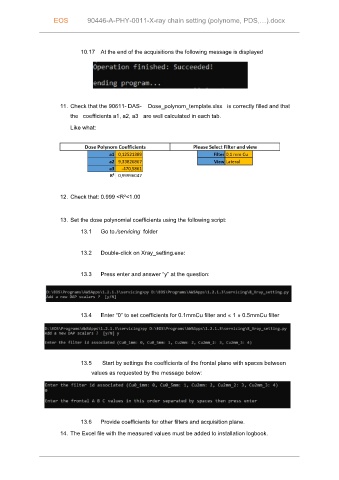

EOS 90446-A-PHY-0011-X-ray chain setting (polynome, PDS,…).docx

10.17 At the end of the acquisitions the following message is displayed

11. Check that the 90611- DAS- Dose_polynom_template.xlsx is correctly filled and that

the coefficients a1, a2, a3 are well calculated in each tab.
Like what:

12. Check that: 0.999 <R²<1.00

13. Set the dose polynomial coefficients using the following script:

13.1 Go to./servicing folder

13.2 Double-click on Xray_setting.exe:

13.3 Press enter and answer “y” at the question:

13.4 Enter “0” to set coefficients for 0.1mmCu filter and « 1 » 0.5mmCu filter

13.5 Start by settings the coefficients of the frontal plane with spaces between
values as requested by the message below:

13.6 Provide coefficients for other filters and acquisition plane.
14. The Excel file with the measured values must be added to installation logbook.
