EOS 90401-A-PHY-0006-PDU Basic Power On

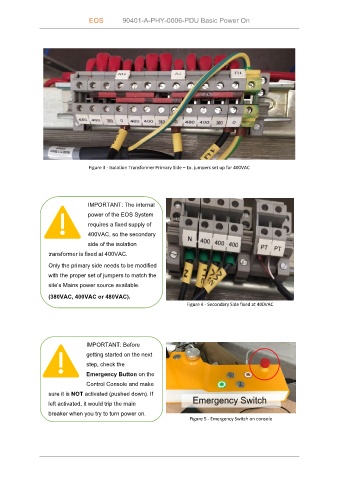

Figure 3 - Isolation Transformer Primary Side – Ex. jumpers set up for 400VAC

IMPORTANT: The internal
power of the EOS System
requires a fixed supply of
400VAC, so the secondary

side of the isolation
transformer is fixed at 400VAC.
Only the primary side needs to be modified

with the proper set of jumpers to match the
site’s Mains power source available.
(380VAC, 400VAC or 480VAC).
Figure 4 - Secondary Side fixed at 400VAC

IMPORTANT: Before
getting started on the next
step, check the
Emergency Button on the
Control Console and make

sure it is NOT activated (pushed down). If
left activated, it would trip the main
breaker when you try to turn power on.
Figure 5 - Emergency Switch on console
