EOS 90410-B-PHY-0008-External brakes transportation lock removal

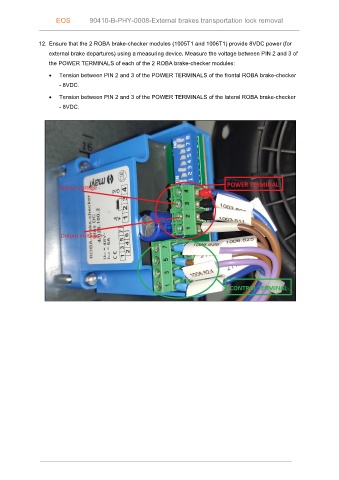

12. Ensure that the 2 ROBA brake-checker modules (1005T1 and 1006T1) provide 8VDC power (for
external brake departures) using a measuring device. Measure the voltage between PIN 2 and 3 of
the POWER TERMINALS of each of the 2 ROBA brake-checker modules:
• Tension between PIN 2 and 3 of the POWER TERMINALS of the frontal ROBA brake-checker
- 8VDC.
• Tension between PIN 2 and 3 of the POWER TERMINALS of the lateral ROBA brake-checker
- 8VDC.
