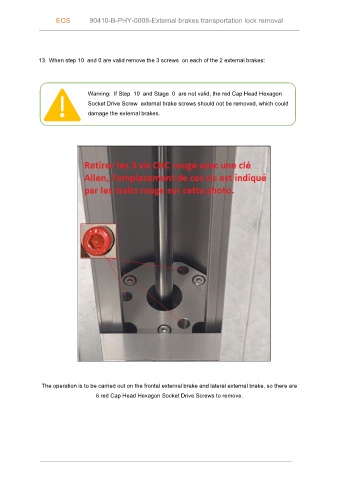

EOS 90410-B-PHY-0008-External brakes transportation lock removal
13. When step 10 and 0 are valid remove the 3 screws on each of the 2 external brakes:
Warning: If Step 10 and Stage 0 are not valid, the red Cap Head Hexagon
Socket Drive Screw external brake screws should not be removed, which could
damage the external brakes.
The operation is to be carried out on the frontal external brake and lateral external brake, so there are
6 red Cap Head Hexagon Socket Drive Screws to remove.
