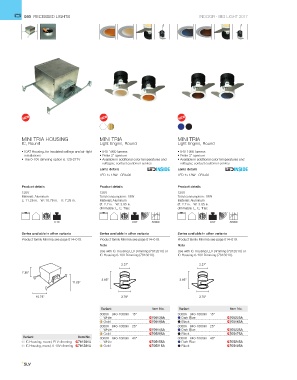

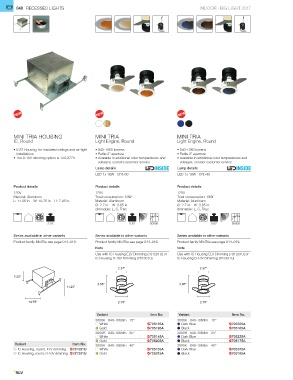

040 RECESSED LIGHTS INDOOR · BIG LIGHT 2017

MINI TRIA HOUSING MINI TRIA MINI TRIA
IC, Round Light Engine, Round Light Engine, Round
• ICAT Housing, for insulated ceilings and air-tight • 840-1060 lumens • 840-1060 lumens
installations • Petite 2" aperture • Petite 2" aperture
• The 0-10V dimming option is 120-277V • Available in additional color temperatures and • Available in additional color temperatures and
voltages; contact customer service voltages; contact customer service
Lamp details Lamp details
LED 1x 18W CRI>90 LED 1x 18W CRI>90

Product details Product details Product details
120V 120V 120V
Material: Aluminum Total consumption: 18W Total consumption: 18W
L: 11.25 in. W: 10.75 in. H: 7.25 in. Material: Aluminum Material: Aluminum
Ø: 2.7 in. W: 3.85 in. Ø: 2.7 in. W: 3.85 in.
dimmable: L, C, Triac dimmable: L, C, Triac

3.16 0.67 50000 0.67 50000

Series available in other variants Series available in other variants Series available in other variants
Product family MiniTria see page 014–019. Product family MiniTria see page 014–019. Product family MiniTria see page 014–019.
Note Note
Use with IC Housing ELV Dimming (781281U) or Use with IC Housing ELV Dimming (781281U) or
IC Housing 0-10V Dimming (781301U). IC Housing 0-10V Dimming (781301U).
2.37” 2.37”
7.25”
3.85” 3.85”
11.25”

10.75” 2.70” 2.70”

Variant Item No. Variant Item No.
3000K 840-1060lm 15° 3000K 840-1060lm 15°
White 705135A Dark Blue 705225A
Gold 705195A Black 705165A
3000K 840-1060lm 25° 3000K 840-1060lm 25°
White 705145A Dark Blue 705235A
Gold 705205A Black 705175A
Variant Item No. 3000K 840-1060lm 40° 3000K 840-1060lm 40°
IC Housing, round, ELV dimming 781281U White 705155A Dark Blue 705245A
IC Housing, round, 0-10V dimming 781301U Gold 705215A Black 705185A
