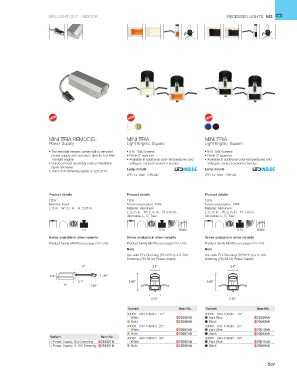

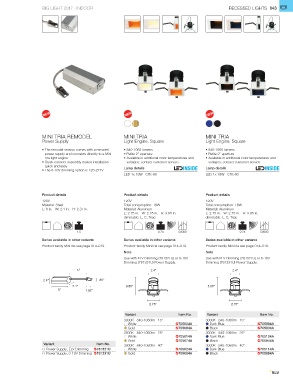

BIG LIGHT 2017 ∙ INDOOR RECESSED LIGHTS 043

MINI TRIA REMODEL MINI TRIA MINI TRIA
Power Supply Light Engine, Square Light Engine, Square
• The remodel version comes with a remodel • 840-1060 lumens • 840-1060 lumens
power supply and connects directly to a Mini • Petite 2" aperture • Petite 2" aperture
Tria light engine • Available in additional color temperatures and • Available in additional color temperatures and
• Quick connect assembly makes installation voltages; contact customer service voltages; contact customer service
quick and easy
• The 0-10V dimming option is 120-277V Lamp details Lamp details
LED 1x 18W CRI>90 LED 1x 18W CRI>90

Product details Product details Product details
120V 120V 120V
Material: Steel Total consumption: 18W Total consumption: 18W
L: 6 in. W: 2.1 in. H: 2.37 in. Material: Aluminum Material: Aluminum
L: 2.75 in. W: 2.75 in. H: 3.85 in. L: 2.75 in. W: 2.75 in. H: 3.85 in.
dimmable: L, C, Triac dimmable: L, C, Triac

1.5 0.74 50000 0.74 50000
Series available in other variants Series available in other variants Series available in other variants
Product family MiniTria see page 014–019. Product family MiniTria see page 014–019. Product family MiniTria see page 014–019.
Note Note
Use with ELV Dimming (781321U) or 0-10V Use with ELV Dimming (781321U) or 0-10V
Dimming (781331U) Power Supply. Dimming (781331U) Power Supply.
5” 2.4” 2.4”
2.4” .86”
2.1” 3.85” 3.85”
6” 1.62”

2.75” 2.75”
Variant Item No. Variant Item No.
3000K 840-1060lm 15° 3000K 840-1060lm 15°
White 705004A Dark Blue 705094A
Gold 705064A Black 705034A
3000K 840-1060lm 25° 3000K 840-1060lm 25°
White 705014A Dark Blue 705104A
Gold 705074A Black 705044A
Variant Item No. 3000K 840-1060lm 40° 3000K 840-1060lm 40°
Power Supply, ELV Dimming 781321U White 705024A Dark Blue 705114A
Power Supply, 0-10V Dimming 781331U Gold 705084A Black 705054A
