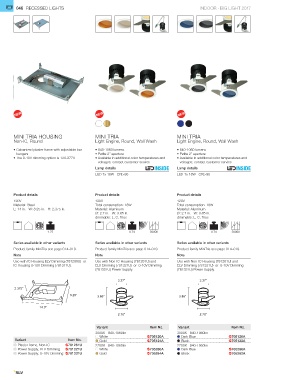

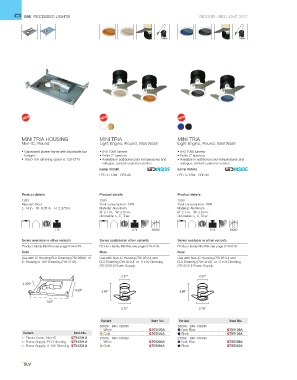

046 RECESSED LIGHTS INDOOR · BIG LIGHT 2017

MINI TRIA HOUSING MINI TRIA MINI TRIA
Non-IC, Round Light Engine, Round, Wall Wash Light Engine, Round, Wall Wash
• Galvanized plaster frame with adjustable bar • 840-1060 lumens • 840-1060 lumens
hangers • Petite 2" aperture • Petite 2" aperture
• The 0-10V dimming option is 120-277V • Available in additional color temperatures and • Available in additional color temperatures and
voltages; contact customer service voltages; contact customer service
Lamp details Lamp details
LED 1x 18W CRI>90 LED 1x 18W CRI>90

Product details Product details Product details
120V 120V 120V
Material: Steel Total consumption: 18W Total consumption: 18W
L: 14 in. W: 8.25 in. H: 2.375 in. Material: Aluminum Material: Aluminum
Ø: 2.7 in. W: 3.85 in. Ø: 2.7 in. W: 3.85 in.
dimmable: L, C, Triac dimmable: L, C, Triac

1.75 0.74 50000 0.74 50000

Series available in other variants Series available in other variants Series available in other variants
Product family MiniTria see page 014–019. Product family MiniTria see page 014–019. Product family MiniTria see page 014–019.
Note Note Note
Use with IC Housing ELV Dimming (781289U) or Use with Non-IC Housing (781261U) and Use with Non-IC Housing (781261U) and
IC Housing 0-10V Dimming (781311U). ELV Dimming (781321U) or 0-10V Dimming ELV Dimming (781321U) or 0-10V Dimming
(781331U) Power Supply. (781331U) Power Supply.

2.37” 2.37”
2.375”
8.25” 3.85” 3.85”

14.0”
2.70” 2.70”

Variant Item No. Variant Item No.
3000K 840-1060lm 3000K 840-1060lm
White 705120A Dark Blue 705126A
Variant Item No. Gold 705124A Black 705122A
Plaster frame, Non-IC 781261U 2700K 840-1060lm 2700K 840-1060lm
Power Supply, ELV Dimming 781321U White 705280A Dark Blue 705286A
Power Supply, 0-10V Dimming 781331U Gold 705284A Black 705282A
