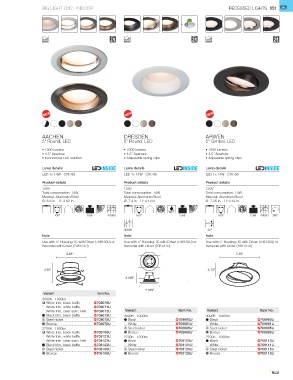

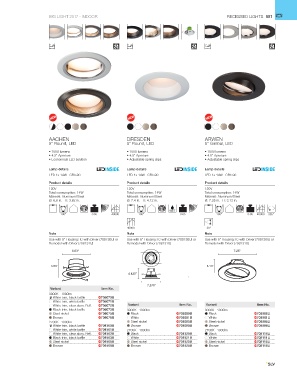

Page 51 - SLV-NA_BL17_Intro+Icons.indd

BIG LIGHT 2017 ∙ INDOOR RECESSED LIGHTS 051

AACHEN DRESDEN ARWEN
5" Round, LED 5" Round, LED 5" Gimbal, LED
• 1000 lumens • 1000 lumens • 1000 lumens
• 4.5" Aperture • 4.5" Aperture • 4.5" Aperture
• Economical LED solution • Adjustable spring clips • Adjustable spring clips
Lamp details Lamp details Lamp details
LED 1x 14W CRI>90 LED 1x 14W CRI>90 LED 1x 14W CRI>90
Product details Product details Product details
120V 120V 120V
Total consumption: 14W Total consumption: 14W Total consumption: 14W
Material: Aluminum/Steel Material: Aluminum/Steel Material: Aluminum/Steel
Ø: 6.6 in. H: 3.62 in. Ø: 7.4 in. H: 4.12 in. Ø: 7.25 in. H: 3.12 in.

100° 0.65 40000 100° 0.65 100° 0.65 40000 355°

40000 30°
Note Note Note
Use with 5" Housing: IC with Driver (708130U) or Use with 5" Housing: IC with Driver (708130U) or Use with 5" Housing: IC with Driver (708130U) or
Remodel with Driver (708131U) Remodel with Driver (708131U) Remodel with Driver (708131U)
6.63” 7.25”

3.63” 3.13”

4.125”

7.375”
Variant Item No.
3000K 1000lm
White trim, black baffle 708070U
White trim, white baffle 708071U
White trim, clear alum. Refl. 708072U Variant Item No. Variant Item No.
Black trim, black baffle 708073U 3000K 1000lm 3000K 1000lm
Steel nickel 708075U Black 708090U Black 708080U
Bronze 708078U White 708091U White 708081U
2700K 1000lm Steel nickel 708095U Steel nickel 708085U
White trim, black baffle 708100U Bronze 708098U Bronze 708088U
White trim, white baffle 708101U 2700K 1000lm 2700K 1000lm
White trim, clear alum. Refl. 708102U Black 708120U Black 708110U
Black trim, black baffle 708103U White 708121U White 708111U
Steel nickel 708105U Steel nickel 708125U Steel nickel 708115U
Bronze 708108U Bronze 708128U Bronze 708118U
