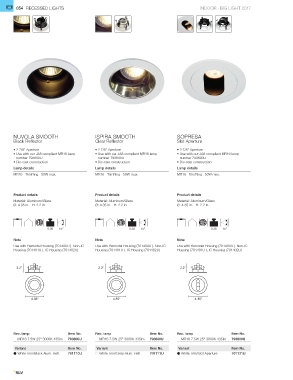

Page 54 - SLV-NA_BL17_Intro+Icons.indd

054 RECESSED LIGHTS INDOOR · BIG LIGHT 2017

NUVOLA SMOOTH ISPIRA SMOOTH SOPRESA
Black Reflector Clear Reflector Slot Aperture
• 2 7/8" Aperture • 2 7/8" Aperture • 2 7/8" Aperture
• Use with our JA8 compliant MR16 lamp • Use with our JA8 compliant MR16 lamp • Use with our JA8 compliant MR16 lamp
number 793600U number 793600U number 793600U
• Die-cast construction • Die-cast construction • Die-cast construction
Lamp details Lamp details Lamp details
MR16 TrimRing 50W max. MR16 TrimRing 50W max. MR16 TrimRing 50W max.

Product details Product details Product details
Material: Aluminum/Glass Material: Aluminum/Glass Material: Aluminum/Glass
Ø: 4.35 in. H: 2.2 in. Ø: 4.35 in. H: 2.2 in. Ø: 4.35 in. H: 2.2 in.

0.36 15° 0.36 15° 0.36 15°

Note Note Note
Use with Remodel Housing (701400U ). Non-IC Use with Remodel Housing (701400U ). Non-IC Use with Remodel Housing (701400U ). Non-IC
Housing (701401U ). IC Housing (701402U) Housing (701401U ). IC Housing (701402U) Housing (701401U ). IC Housing (701402U)

2.2” 2.2” 2.2”

4.35” 4.35” 4.35”

Rec. lamp Item No. Rec. lamp Item No. Rec. lamp Item No.
MR16 7.5W 25° 3000K 435lm 793600U MR16 7.5W 25° 3000K 435lm 793600U MR16 7.5W 25° 3000K 435lm 793600U

Variant Item No. Variant Item No. Variant Item No.
White Trim/Black Alum. Refl. 701110U White Trim/Clear Alum. Refl. 701111U White Trim/Slot Aperture 701121U
