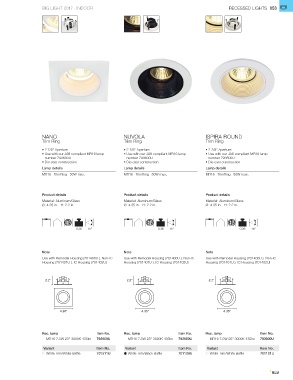

BIG LIGHT 2017 ∙ INDOOR RECESSED LIGHTS 053

NANO NUVOLA ISPIRA ROUND
Trim Ring Trim Ring Trim Ring
• 2 7/8" Aperture • 2 7/8" Aperture • 2 7/8" Aperture
• Use with our JA8 compliant MR16 lamp • Use with our JA8 compliant MR16 lamp • Use with our JA8 compliant MR16 lamp
number 793600U number 793600U number 793600U
• Die-cast construction • Die-cast construction • Die-cast construction
Lamp details Lamp details Lamp details
MR16 TrimRing 50W max. MR16 TrimRing 50W max. MR16 TrimRing 50W max.

Product details Product details Product details
Material: Aluminum/Glass Material: Aluminum/Glass Material: Aluminum/Glass
Ø: 4.35 in. H: 2.2 in. Ø: 4.35 in. H: 2.2 in. Ø: 4.35 in. H: 2.2 in.

0.36 15° 0.36 15° 0.36 15°

Note Note Note
Use with Remodel Housing (701400U ). Non-IC Use with Remodel Housing (701400U ). Non-IC Use with Remodel Housing (701400U ). Non-IC
Housing (701401U ). IC Housing (701402U) Housing (701401U ). IC Housing (701402U) Housing (701401U ). IC Housing (701402U)

2.2” 2.2” 2.2”

4.35” 4.35” 4.35”

Rec. lamp Item No. Rec. lamp Item No. Rec. lamp Item No.
MR16 7.5W 25° 3000K 435lm 793600U MR16 7.5W 25° 3000K 435lm 793600U MR16 7.5W 25° 3000K 435lm 793600U

Variant Item No. Variant Item No. Variant Item No.
White Trim/White Baffle 701511U White Trim/Black Baffle 701100U White Trim/White Baffle 701101U
