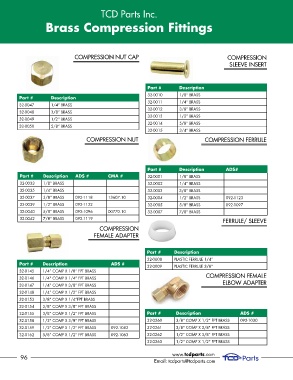

Page 97 - TCD Catalog 2017

TCD Parts Inc.

Brass Compression Fittings

COMPRESSION NUT CAP COMPRESSION
SLEEVE INSERT

Part # Description
32-0010 1/8” BRASS
Part # Description
32-0011 1/4” BRASS
32-0047 1/4” BRASS
32-0012 3/8” BRASS
32-0048 3/8” BRASS
32-0013 1/2” BRASS
32-0049 1/2” BRASS
32-0014 5/8” BRASS
32-0050 5/8” BRASS
32-0015 3/4” BRASS
COMPRESSION NUT COMPRESSION FERRULE

Part # Description ADS#
Part # Description ADS # CMA # 32-0001 1/8” BRASS
32-0033 1/8” BRASS 32-0002 1/4” BRASS
32-0035 1/4” BRASS 32-0003 3/8” BRASS
32-0037 3/8” BRASS 092-1118 13607.10 32-0004 1/2” BRASS 092-1123
32-0039 1/2” BRASS 092-1122 32-0005 5/8” BRASS 092-1097
32-0040 5/8” BRASS 092-1096 00770.10 32-0007 7/8” BRASS
32-0042 7/8” BRASS 092-1119 FERRULE/ SLEEVE

COMPRESSION
FEMALE ADAPTER

Part # Description
32-0008 PLASTIC FERRULE 1/4”
Part # Description ADS #
32-0009 PLASTIC FERRULE 3/8”
32-0145 1/4” COMP X 1/8” FPT BRASS
32-0146 1/4” COMP X 1/4” FPT BRASS COMPRESSION FEMALE
32-0147 1/4” COMP X 3/8” FPT BRASS ELBOW ADAPTER
32-0148 1/4” COMP X 1/2” FPT BRASS
32-0153 3/8” COMP X 1/4”FPT BRASS
32-0154 3/8” COMP X 3/8” FPT BRASS
32-0155 3/8” COMP X 1/2” FPT BRASS Part # Description ADS #
32-0158 1/2” COMP X 3/8” FPT BRASS 32-0260 3/8” COMP X 1/2” FPT BRASS 092-1030
32-0159 1/2” COMP X 1/2” FPT BRASS 092-1082 32-0261 3/8" COMP X 3/8" FPT BRASS
32-0162 5/8” COMP X 1/2” FPT BRASS 092-1063 32-0262 1/2” COMP X 3/8” FPT BRASS
32-0263 1/2” COMP X 1/2” FPT BRASS
