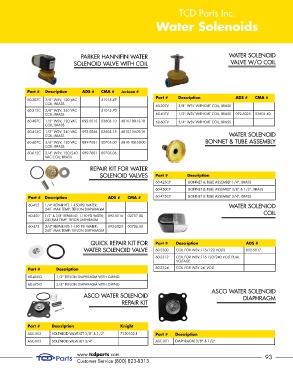

Page 94 - TCD Catalog 2017

TCD Parts Inc.

Water Solenoids

PARKER HANNIFIN WATER WATER SOLENOID
SOLENOID VALVE WITH COIL VALVE W/O COIL

Part # Description ADS # CMA # Jackson #
Part # Description ADS # CMA #
60-307C 3/8” WSV; 120 VAC 41015.49
COIL; BRASS
60-307V 3/8” WSV WITHOUT COIL; BRASS
60-312C 3/8” WSV; 240 VAC 41015.70
COIL; BRASS 60-407V 1/2” WSV WITHOUT COIL; BRASS 092-5025 03603.40
60-407C 1/2” WSV; 120 VAC 092-5015 03603.10 4810-100-12-18 60-607V 3/4” WSV WITHOUT COIL; BRASS
COIL; BRASS
60-412C 1/2” WSV; 240 VAC 092-5046 03603.15 4810-100-09-18
COIL; BRASS WATER SOLENOID
60-607C 3/4” WSV; 120 VAC 089-7001 00705.00 4810-100-53-00 BONNET & TUBE ASSEMBLY
COIL; BRASS
60-612C 3/4” WSV; 120/240 089-7001 00705.05
VAC COIL; BRASS

REPAIR KIT FOR WATER
SOLENOID VALVES Part # Description
60-425CP BONNET & TUBE ASSEMBLY 1/4”; BRASS
60-450CP BONNET & TUBE ASSEMBLY 3/8” & 1/2”; BRASS
Part # Description ADS # CMA # 60-475CP BONNET & TUBE ASSEMBLY 3/4”; BRASS
60-425 1/4” REPAIR KIT; 1-150 PSI WATER; WATER SOLENIOD
240˚ MAX TEMP; TEFLON DIAPHRAGM
60-450 1/2” & 3/8” REPAIR KIT; 1-150 PSI WATER; 092-5016 00707.00 COIL
240˚MAX TEMP; TEFLON DIAPHRAGM
60-475 3/4” REPAIR KIT; 1-150 PSI WATER; 092-5020 00706.00
240˚ MAX TEMP; TEFLON DIAPHRAGM
QUICK REPAIR KIT FOR Part # Description ADS #
WATER SOLENOID VALVE 60-2300 COIL FOR WSV 115/120 VOLTS 092-5017
60-2312 COIL FOR WSV 115-120/240 VOLT DUAL
VOLTAGE
Part # Description 60-2324 COIL FOR WSV 24 VOLT
60-450-D 1/2” TEFLON DIAPHRAGM WITH O-RING
60-475-D 3/4” TEFLON DIAPHRAGM WITH O-RING
ASCO WATER SOLENOID
ASCO WATER SOLENOID DIAPHRAGM
REPAIR KIT

Part # Description Knight
ASC-002 SOLENIOD VALVE KIT 3/8” & 1/2” 7120102-1 Part # Description
ASC-003 SOLENIOD VALVE KIT 3/4” ASC-001 DIAPHRAGM 3/8” & 1/2”

www.tcdparts.com 93
Customer Service (800) 823-8313
