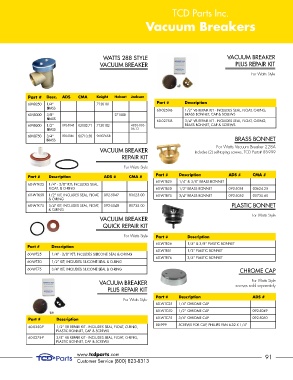

Page 92 - TCD Catalog 2017

TCD Parts Inc.

Vacuum Breakers

WATTS 288 STYLE VACUUM BREAKER
VACUUM BREAKER PLUS REPAIR KIT

For Watts Style

Part # Desc. ADS CMA Knight Hobart Jackson
Part # Description
60-VB250 1/4” 7120101
BRASS
60-0250-B 1/2” VB REPAIR KIT - INCLUDES SEAL, FLOAT, O-RING,
60-VB300 3/8” 271008 BRASS BONNET, CAP & SCREWS
BRASS
60-0275-B 3/4” VB REPAIR KIT - INCLUDES SEAL, FLOAT, O-RING,
60-VB500 1/2” 092-5045 02103.71 7120102 4820-003- BRASS BONNET, CAP & SCREWS
BRASS 06-13
60-VB750 3/4” 092-5046 00710.50 9600765-B
BRASS BRASS BONNET
For Watts Vacuum Breaker 228A
VACUUM BREAKER Includes (2) self-taping screws, TCD Parts# 88-999
REPAIR KIT

For Watts Style
Part # Description ADS # CMA # Part # Description ADS # CMA #
60-WTB25 1/4” & 3/8” BRASS BONNET
60-WTK25 1/4” - 3/8” KIT; INCLUDES SEAL,
FLOAT, & O-RING 60-WTB50 1/2” BRASS BONNET 092-5051 03624.25
60-WTK50 1/2” KIT; INCLUDES SEAL, FLOAT, 092-5047 03623.00 60-WTB75 3/4” BRASS BONNET 092-5052 00735.60
& O-RING
60-WTK75 3/4” KIT; INCLUDES SEAL, FLOAT, 092-5048 00735.00 PLASTIC BONNET
& O-RING
For Watts Style
VACUUM BREAKER
QUICK REPAIR KIT

For Watts Style Part # Description
60-WTB26 1/4” & 3/8” PLASTIC BONNET
Part # Description
60-WTB51 1/2” PLASTIC BONNET
60-WT25 1/4” - 3/8” KIT; INCLUDES SILICONE SEAL & O-RING
60-WTB76 3/4” PLASTIC BONNET
60-WT50 1/2” KIT; INCLUDES SILICONE SEAL & O-RING
60-WT75 3/4” KIT; INCLUDES SILICONE SEAL & O-RING CHROME CAP
For Watts Style
VACUUM BREAKER screws sold separately
PLUS REPAIR KIT

Part # Description ADS #
For Watts Style
60-WTC25 1/4” CHROME CAP
60-WTC50 1/2” CHROME CAP 092-5049
Part # Description 60-WTC75 3/4” CHROME CAP 092-5050
88-999 SCREWS FOR CAP, PHILLIPS PAN 6-32 X 1/4”
60-0250-P 1/2” VB REPAIR KIT - INCLUDES SEAL, FLOAT, O-RING,
PLASTIC BONNET, CAP & SCREWS
60-0275-P 3/4” VB REPAIR KIT - INCLUDES SEAL, FLOAT, O-RING,
PLASTIC BONNET, CAP & SCREWS

www.tcdparts.com 91
Customer Service (800) 823-8313
