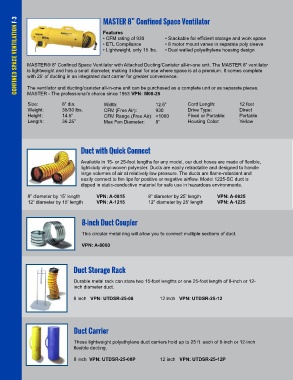

Page 28 - 2020 UTECK Catalog_01-02-20

CONFINED SPACE VENTILATION F-3 MASTER® 8” Confined Space Ventilator with Attached Ducting/Canister all-in-one unit. The MASTER 8” ventilator
MASTER 8” Confined Space Ventilator

Features
• CFM rating of 930
• Stackable for efficient storage and work space
• 8 motor mount vanes in separate poly sleeve

• ETL Compliance
• Lightweight, only 15 lbs.
• Dual walled polyethylene housing design

is lightweight and has a small diameter, making it ideal for use where space is at a premium. It comes complete
with 25’ of ducting in an integrated duct carrier for greater convenience.

The ventilator and ducting/canister all-in-one unit can be purchased as a complete unit or as separate pieces.
MASTER - The professional’s choice since 1953. VPN: M08-25
Size: 8” dia. Width: 12.5” Cord Length: 12 feet
Weight: 35/30 lbs. CFM (Free Air): 930 Drive Type: Direct
Height: 14.5” CFM Range (Free Air): <1000 Fixed or Portable: Portable
Length: 36.25” Max Fan Diameter: 8” Housing Color: Yellow

Duct with Quick Connect
Available in 15- or 25-foot lengths for any model, our duct hoses are made of flexible,
light-duty vinyl-woven polyester. Ducts are easily retractable and designed to handle
large volumes of air at relatively low pressure. The ducts are flame-retardant and
easily connect to fan lips for positive or negative airflow. Model 1225-SC duct is
dipped in static-conductive material for safe use in hazardous environments.

8” diameter by 15’ length VPN: A-0815 8” diameter by 25’ length VPN: A-0825
12” diameter by 15’ length VPN: A-1215 12” diameter by 25’ length VPN: A-1225

8-inch Duct Coupler

This circular metal ring will allow you to connect multiple sections of duct.

VPN: A-8000

Duct Storage Rack
Durable metal rack can store two 15-foot lengths or one 25-foot length of 8-inch or 12-
inch diameter duct.

8 inch VPN: UTDSR-25-08 12 inch VPN: UTDSR-25-12

Duct Carrier
These lightweight polyethylene duct carriers hold up to 25 ft. each of 8-inch or 12-inch
flexible ducting.

8 inch VPN: UTDSR-25-08P 12 inch VPN: UTDSR-25-12P
