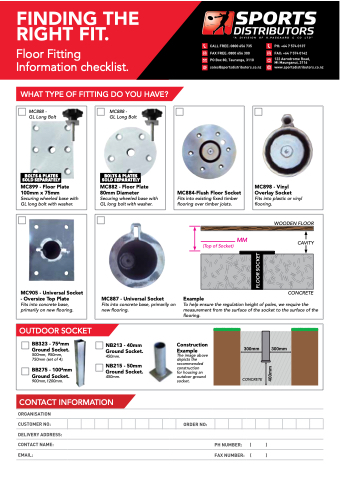

Floor Fitting Information checklist.
WHAT TYPE OF FITTING DO YOU HAVE?
MC888 -
GL Long Bolt
BOLTS & PLATES SOLD SEPARATELY
MC899 - Floor Plate 100mm x 75mm Securing wheeled base with GL long bolt with washer.
MC905 - Universal Socket - Oversize Top Plate
Fits into concrete base, primarily on new flooring.
OUTDOOR SOCKET
BB323 - 752mm Ground Socket.
500mm, 950mm, 750mm (set of 4).
BB275 - 1002mm Ground Socket.
900mm,1200mm.
MC888 -
GL Long Bolt
BOLTS & PLATES SOLD SEPARATELY
MC882 - Floor Plate 80mm Diameter Securing wheeled base with GL long bolt with washer.
MC887 - Universal Socket
Fits into concrete base, primarily on new flooring.
NB213 - 40mm Ground Socket.
450mm.
NB215 - 50mm Ground Socket.
450mm.
MC884-Flush Floor Socket
Fits into existing fixed timber flooring over timber joists.
MM (Top of Socket)
Example
MC898 - Vinyl Overlay Socket
Fits into plastic or vinyl flooring.
WOODEN FLOOR CAVITY
CONCRETE
FLOOR SOCKET
CONTACT INFORMATION
To help ensure the regulation height of poles, we require the measurement from the surface of the socket to the surface of the flooring.
Construction Example
The image above depicts the recommended construction
for housing an outdoor ground socket.
CONCRETE
