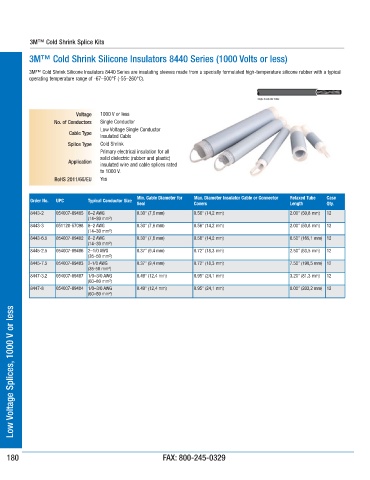

3M™ Cold Shrink Splice Kits

3M™ Cold Shrink Silicone Insulators 8440 Series (1000 Volts or less)

3M™ Cold Shrink Silicone Insulators 8440 Series are insulating sleeves made from a specially formulated high-temperature silicone rubber with a typical
operating temperature range of -67–500°F (-55–260°C).

Single Conductor Cable

Voltage 1000 V or less
No. of Conductors Single Conductor
Low Voltage Single Conductor
Cable Type
Insulated Cable
Splice Type Cold Shrink
Primary electrical insulation for all
solid dielectric (rubber and plastic)
Application
insulated wire and cable splices rated
to 1000 V.
RoHS 2011/65/EU Yes

Min. Cable Diameter for Max. Diameter Insulator Cable or Connector Relaxed Tube Case
Order No. UPC Typical Conductor Size
Seal Covers Length Qty.
8443-2 054007-09485 6–2 AWG 0.30” (7,6 mm) 0.56” (14,2 mm) 2.00” (50,8 mm) 12
(14–30 mm²)
8443-3 051128-57098 6–2 AWG 0.30” (7,6 mm) 0.56” (14,2 mm) 2.00” (50,8 mm) 12
(14–30 mm²)
8443-6.5 054007-09482 6–2 AWG 0.30” (7,6 mm) 0.56” (14,2 mm) 6.50” (165,1 mm) 12
(14–30 mm²)
8445-2.5 054007-09486 2–1/0 AWG 0.37” (9,4 mm) 0.72” (18,3 mm) 2.50” (63,5 mm) 12
(35–50 mm²)
8445-7.5 054007-09483 2-1/0 AWG 0.37” (9,4 mm) 0.72” (18,3 mm) 7.50” (190,5 mm) 12
(35-50 mm²)
8447-3.2 054007-09487 1/0–3/0 AWG 0.49” (12,4 mm) 0.95” (24,1 mm) 3.20” (81,3 mm) 12
(60–80 mm²)
8447-8 054007-09484 1/0–3/0 AWG 0.49” (12,4 mm) 0.95” (24,1 mm) 8.00” (203,2 mm) 12
(60–80 mm²)

1000 V or less

Low Voltage Splices,
