Page 15 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 FIGURES

‡ /DQG DV VRRQ DV SRVVLEOH /DQG DW WKH ¿UVW VLWH DW ZKLFK D VDIH
landing can be made. ACAWS

‡ /DQG DV VRRQ DV SUDFWLFDEOH ([WHQGHG ÀLJKW LV QRW UHFRPPHQGHG
7KH ODQGLQJ VLWH DQG GXUDWLRQ RI ÀLJKW LV DW WKH GLVFUHWLRQ RI WKH
aircraft commander. GROUND

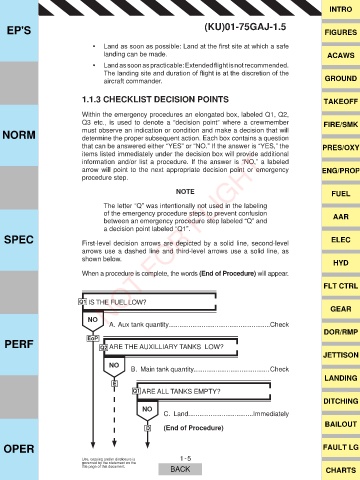

1.1.3 CHECKLIST DECISION POINTS TAKEOFF

Within the emergency procedures an elongated box, labeled Q1, Q2,
Q3 etc., is used to denote a “decision point” where a crewmember FIRE/SMK
NORM must observe an indication or condition and make a decision that will
determine the proper subsequent action. Each box contains a question
that can be answered either “YES” or “NO.” If the answer is “YES,” the PRES/OXY
NOT FOR FLIGHT
items listed immediately under the decision box will provide additional
information and/or list a procedure. If the answer is “NO,” a labeled
arrow will point to the next appropriate decision point or emergency ENG/PROP
procedure step.

NOTE FUEL

The letter “Q” was intentionally not used in the labeling
of the emergency procedure steps to prevent confusion AAR
between an emergency procedure step labeled “Q” and
a decision point labeled “Q1”.
SPEC First-level decision arrows are depicted by a solid line, second-level ELEC

arrows use a dashed line and third-level arrows use a solid line, as
shown below.
HYD
When a procedure is complete, the words (End of Procedure) will appear.
FLT CTRL

Q1 IS THE FUEL LOW?
GEAR
NO
A. Aux tank quantity.......................................................Check
DOR/RMP
PERF EoP Q2 ARE THE AUXILLIARY TANKS LOW?

JETTISON

NO
B. Main tank quantity......................................... Check
LANDING
E
Q1 ARE ALL TANKS EMPTY?
DITCHING

NO
C. Land...................................Immediately
BAILOUT
D (End of Procedure)

OPER FAULT LG

-
Use, copying and/or disclosure is 15
governed by the statement on the
title page of this document. BACK CHARTS
