51 IITGN-UL/Façade 52 IITGN-UL/Façade
FIRE LOAD
SCENARIOS
COMPUTED AS FIRE
LOAD ENERGY
DENSITIES FOR EACH
FLOOR LEVEL
CAN BE SEEN FROM THE FOLLOWING IMAGES.
Image 12: Fire load scenario at first floor level for Test 2 (19 kg w.eq.)
Image 13: Fire load scenario at second floor level for Test 2 (10 kg w.eq.)

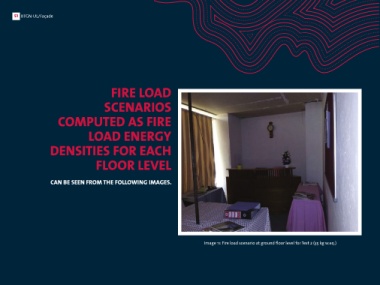

Image 11: Fire load scenario at ground floor level for Test 2 (35 kg w.eq.)
