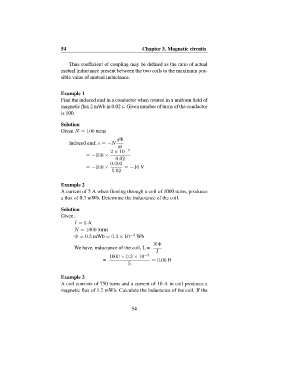

54 Chapter 3. Magnetic circuits

Thus coefficient of coupling may be defined as the ratio of actual
mutual inductance present between the two coils to the maximum pos-
sible value of mutual inductance.

Example 1
Find the induced emf in a conductor when rotated in a uniform field of
magnetic flux 2 mWb in 0.02 s. Given number of turns of the conductor
is 100.

Solution
Given N = 100 turns
dΦ
Induced emf, e = −N
dt
2 × 10 −3
= −100 ×
0.02
0.002
= −100 × = −10 V
0.02

Example 2
A current of 5 A when flowing through a coil of 1000 turns, produces
a flux of 0.3 mWb. Determine the inductance of the coil.

Solution
Given,
I = 5 A
N = 1000 turns
Φ = 0.3 mWb = 0.3 × 10 −3 Wb
NΦ
We have, inductance of the coil, L =
I
1000 × 0.3 × 10 −3
= = 0.06 H
5

Example 3
A coil consists of 750 turns and a current of 10 A in coil produces a
magnetic flux of 1.2 mWb. Calculate the inductance of the coil. If the

54
