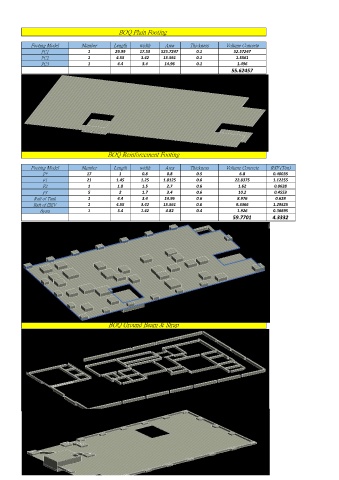

BOQ Plain Footing

Footing Model Number Length width Area Thickness Volume Concrete
PC1 1 29.99 17.53 525.7247 0.1 52.57247
PC2 1 4.55 3.42 15.561 0.1 1.5561
PC3 1 4.4 3.4 14.96 0.1 1.496
55.62457

BOQ Reinforcement Footing

Footing Model Number Length width Area Thickness Volume Concrete RSF (Ton)
F* 17 1 0.8 0.8 0.5 6.8 0.40035
F1 21 1.45 1.25 1.8125 0.6 22.8375 1.12255
F2 1 1.8 1.5 2.7 0.6 1.62 0.0628
F3 5 2 1.7 3.4 0.6 10.2 0.4553
Raft of Tank 1 4.4 3.4 14.96 0.6 8.976 0.628
Raft of ElEV 1 4.55 3.42 15.561 0.6 9.3366 1.29525
Byara 1 3.4 1.42 4.82 0.4 1.926 0.36895
59.7701 4.3332

BOQ Ground Beam & Strap
