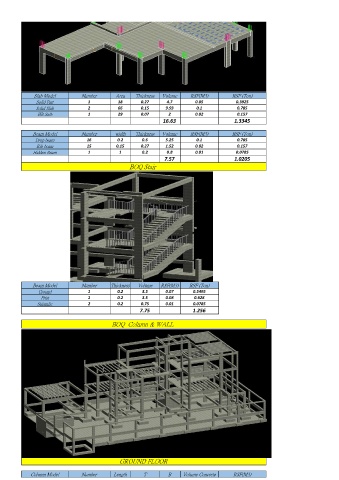

Slab Model Number Area Thickness Volume RSF(M3) RSF (Ton)
Solid Part 1 18 0.27 4.7 0.05 0.3925
Solid Slab 2 66 0.15 9.93 0.1 0.785
HB Salb 1 29 0.07 2 0.02 0.157
16.63 1.3345

Beam Model Number width Thickness Volume RSF(M3) RSF (Ton)
Drop beam 16 0.2 0.6 5.25 0.1 0.785
Rib beam 15 0.15 0.27 1.52 0.02 0.157
Hidden Beam 1 1 0.2 0.8 0.01 0.0785
7.57 1.0205

BOQ Stair

Beam Model Number Thickness Volume RSF(M3) RSF (Ton)
Ground 1 0.2 3.5 0.07 0.5495
Frist 1 0.2 3.5 0.08 0.628
Salamlic 2 0.2 0.75 0.01 0.0785
7.75 1.256

BOQ Column & WALL

GROUND FLOOR

Column Model Number Length T B Volume Concrete RSF(M3)
