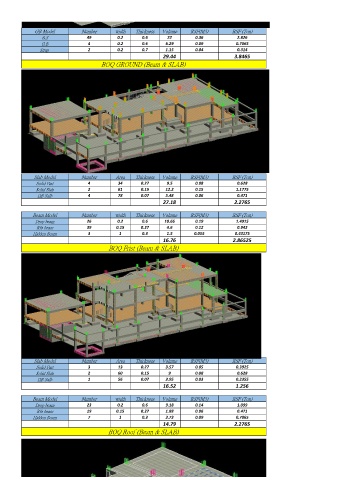

GB Model Number width Thickness Volume RSF(M3) RSF (Ton)
B.S 49 0.2 0.6 22 0.36 2.826
G.B 4 0.2 0.6 6.29 0.09 0.7065
Strap 2 0.2 0.7 1.15 0.04 0.314
29.44 3.8465

BOQ GROUND (Beam & SLAB)

Slab Model Number Area Thickness Volume RSF(M3) RSF (Ton)
Solid Part 4 34 0.27 9.5 0.08 0.628
Solid Slab 2 81 0.15 12.2 0.15 1.1775
HB Salb 4 78 0.07 5.48 0.06 0.471
27.18 2.2765

Beam Model Number width Thickness Volume RSF(M3) RSF (Ton)
Drop beam 26 0.2 0.6 10.66 0.19 1.4915
Rib beam 39 0.15 0.27 4.6 0.12 0.942
Hidden Beam 3 1 0.3 1.5 0.055 0.43175
16.76 2.86525

BOQ Frist (Beam & SLAB)

Slab Model Number Area Thickness Volume RSF(M3) RSF (Ton)
Solid Part 3 13 0.27 3.57 0.05 0.3925
Solid Slab 2 60 0.15 9 0.08 0.628
HB Salb 1 56 0.07 3.95 0.03 0.2355
16.52 1.256

Beam Model Number width Thickness Volume RSF(M3) RSF (Ton)
Drop beam 23 0.2 0.6 9.18 0.14 1.099
Rib beam 19 0.15 0.27 1.88 0.06 0.471
Hidden Beam 7 1 0.3 3.73 0.09 0.7065
14.79 2.2765

BOQ Roof (Beam & SLAB)
