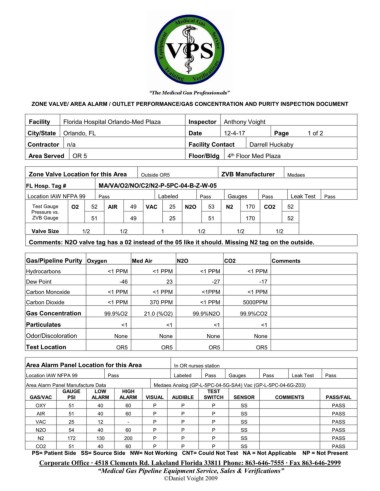

ZONE VALVE/ AREA ALARM / OUTLET PERFORMANCE/GAS CONCENTRATION AND PURITY INSPECTION DOCUMENT

Facility Florida Hospital Orlando-Med Plaza Inspector Anthony Voight
City/State Orlando, FL Date 12-4-17 Page 1 of 2
Contractor n/a Facility Contact Darrell Huckaby

Area Served OR 5 Floor/Bldg 4 Floor Med Plaza
th

Zone Valve Location for this Area Outside OR5 ZVB Manufacturer Medaes

FL Hosp. Tag # MA/VA/O2/NO/C2/N2-P-5PC-04-B-Z-W-05
Location IAW NFPA 99 Pass Labeled Pass Gauges Pass Leak Test Pass
Test Gauge O2 52 AIR 49 VAC 25 N2O 53 N2 170 CO2 52
Pressure vs.
ZVB Gauge 51 49 25 51 170 52

Valve Size 1/2 1/2 1 1/2 1/2 1/2
Comments: N2O valve tag has a 02 instead of the 05 like it should. Missing N2 tag on the outside.

Gas/Pipeline Purity Oxygen Med Air N2O CO2 Comments
Hydrocarbons <1 PPM <1 PPM <1 PPM <1 PPM
Dew Point -46 23 -27 -17
Carbon Monoxide <1 PPM <1 PPM <1PPM <1 PPM
Carbon Dioxide <1 PPM 370 PPM <1 PPM 5000PPM
Gas Concentration 99.9%O2 21.0 (%O2) 99.9%N2O 99.9%CO2

Particulates <1 <1 <1 <1
Odor/Discoloration None None None None
Test Location OR5 OR5 OR5 OR5

Area Alarm Panel Location for this Area In OR nurses station
Location IAW NFPA 99 Pass Labeled Pass Gauges Pass Leak Test Pass
Area Alarm Panel Manufacture Data Medaes Analog (GP-L-5PC-04-5G-SA4) Vac (GP-L-5PC-04-6G-Z03)
GAUGE LOW HIGH TEST
GAS/VAC PSI ALARM ALARM VISUAL AUDIBLE SWITCH SENSOR COMMENTS PASS/FAIL
OXY 51 40 60 P P P SS PASS
AIR 51 40 60 P P P SS PASS
VAC 25 12 - P P P SS PASS
N2O 54 40 60 P P P SS PASS
N2 172 130 200 P P P SS PASS
CO2 51 40 60 P P P SS PASS
PS= Patient Side SS= Source Side NW= Not Working CNT= Could Not Test NA = Not Applicable NP = Not Present
