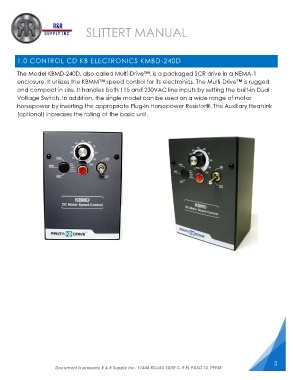

SLITTERT MANUAL
1.0 CONTROL CD KB ELECTRONICS KMBD-240D
The Model KBMD-240D, also called Multi-Drive™, is a packaged SCR drive in a NEMA-1
enclosure. It utilizes the KBMM™ speed control for its electronics. The Multi-Drive™ is rugged
and compact in size. It handles both 115 and 230VAC line inputs by setting the built-in Dual
Voltage Switch. In addition, the single model can be used on a wide range of motor
horsepower by inserting the appropriate Plug-in Horsepower Resistor®. The Auxiliary Heatsink
(optional) increases the rating of the basic unit.
