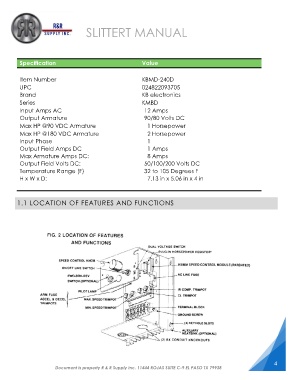

Page 4 - SLITER MANUAL
P. 4
SLITTERT MANUAL
Specification Value
Item Number KBMD-240D
UPC 024822093705
Brand KB electronics
Series KMBD
Input Amps AC 12 Amps
Output Armature 90/80 Volts DC
Max HP @90 VDC Armature 1 Horsepower
Max HP @180 VDC Armature 2 Horsepower
Input Phase 1
Output Field Amps DC 1 Amps
Max Armature Amps DC: 8 Amps
Output Field Volts DC: 50/100/200 Volts DC
Temperature Range (F) 32 to 105 Degrees F
H x W x D: 7.13 in x 5.06 in x 4 in
1.1 LOCATION OF FEATURES AND FUNCTIONS
