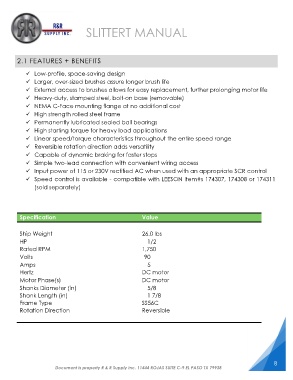

Page 8 - SLITER MANUAL

SLITTERT MANUAL

2.1 FEATURES + BENEFITS

✓ Low-profile, space-saving design
✓ Larger, over-sized brushes assure longer brush life
✓ External access to brushes allows for easy replacement, further prolonging motor life
✓ Heavy-duty, stamped steel, bolt-on base (removable)

✓ NEMA C-Face mounting flange at no additional cost
✓ High strength rolled steel frame
✓ Permanently lubricated sealed ball bearings
✓ High starting torque for heavy load applications
✓ Linear speed/torque characteristics throughout the entire speed range
✓ Reversible rotation direction adds versatility
✓ Capable of dynamic braking for faster stops

✓ Simple two-lead connection with convenient wiring access
✓ Input power of 115 or 230V rectified AC when used with an appropriate SCR control
✓ Speed control is available - compatible with LEESON Item#s 174307, 174308 or 174311
(sold separately)

Specification Value

Ship Weight 26.0 lbs
HP 1/2
Rated RPM 1,750
Volts 90
Amps 5
Hertz DC motor
Motor Phase(s) DC motor
Shanks Diameter (in) 5/8
Shank Length (in) 1 7/8
Frame Type SS56C
Rotation Direction Reversible

8
