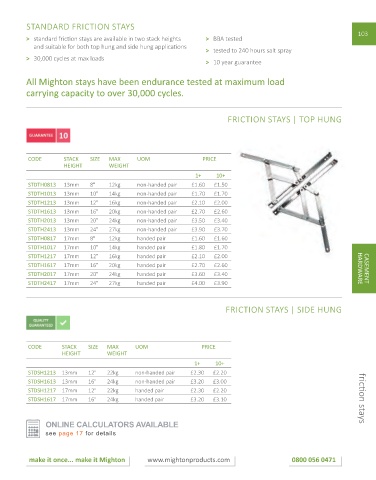

Page 103 - C:\Users\jimh\Documents\Flip PDF Professional\a5-paint-brochure-2019-web\

STANDARD FRICTION STAYS
103
> standard fricti on stays are available in two stack heights > BBA tested
and suitable for both top hung and side hung applicati ons
> tested to 240 hours salt spray
> 30,000 cycles at max loads
> 10 year guarantee

All Mighton stays have been endurance tested at maximum load
carrying capacity to over 30,000 cycles.

FRICTION STAYS | TOP HUNG

CODE STACK SIZE MAX UOM PRICE
HEIGHT WEIGHT
1+ 10+
STDTH0813 13mm 8" 12kg non-handed pair £1.60 £1.50
STDTH1013 13mm 10" 14kg non-handed pair £1.70 £1.70
STDTH1213 13mm 12" 16kg non-handed pair £2.10 £2.00
STDTH1613 13mm 16" 20kg non-handed pair £2.70 £2.60
STDTH2013 13mm 20" 24kg non-handed pair £3.50 £3.40
STDTH2413 13mm 24" 27kg non-handed pair £3.90 £3.70
STDTH0817 17mm 8" 12kg handed pair £1.60 £1.60
STDTH1017 17mm 10" 14kg handed pair £1.80 £1.70
STDTH1217 17mm 12" 16kg handed pair £2.10 £2.00
STDTH1617 17mm 16" 20kg handed pair £2.70 £2.60 HARDWARE
STDTH2017 17mm 20" 24kg handed pair £3.60 £3.40 CASEMENT
STDTH2417 17mm 24" 27kg handed pair £4.00 £3.90

FRICTION STAYS | SIDE HUNG

CODE STACK SIZE MAX UOM PRICE
HEIGHT WEIGHT
1+ 10+
STDSH1213 13mm 12" 22kg non-handed pair £2.30 £2.20
STDSH1613 13mm 16" 24kg non-handed pair £3.20 £3.00
STDSH1217 17mm 12" 22kg handed pair £2.30 £2.20
STDSH1617 17mm 16" 24kg handed pair £3.20 £3.10 friction stays

ONLINE CALCULATORS AVAILABLE
see page 17 for details

make it once... make it Mighton www.mightonproducts.com 0800 056 0471
