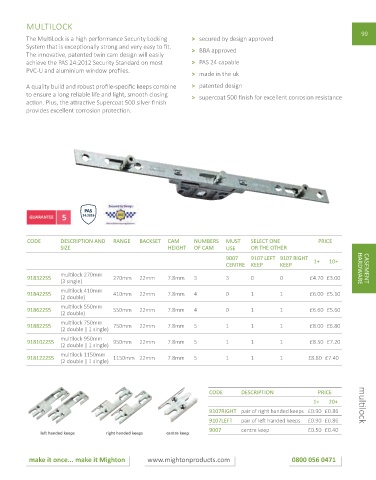

MULTILOCK
99
The Multi Lock is a high performance Security Locking > secured by design approved
System that is excepti onally strong and very easy to fi t. > BBA approved
The innovati ve, patented twin cam design will easily
achieve the PAS 24:2012 Security Standard on most > PAS 24 capable
PVC-U and aluminium window profi les.
> made in the uk

A quality build and robust profi le-specifi c keeps combine > patented design
to ensure a long reliable life and light, smooth closing > supercoat 500 fi nish for excellent corrosion resistance
acti on. Plus, the att racti ve Supercoat 500 silver fi nish
provides excellent corrosion protecti on.

CODE DESCRIPTION AND RANGE BACKSET CAM NUMBERS MUST SELECT ONE PRICE
SIZE HEIGHT OF CAM USE OR THE OTHER
9007 9107 LEFT 9107 RIGHT 1+ 10+
CENTRE KEEP KEEP HARDWARE
multi lock 270mm CASEMENT
918322S5 270mm 22mm 7.8mm 3 3 0 0 £4.70 £3.00
(3 single)
multi lock 410mm
918422S5 410mm 22mm 7.8mm 4 0 1 1 £6.00 £5.10
(2 double)
multi lock 550mm
918622S5 550mm 22mm 7.8mm 4 0 1 1 £6.60 £5.60
(2 double)
multi lock 750mm
918822S5 750mm 22mm 7.8mm 5 1 1 1 £8.00 £6.80
(2 double | 1 single)
multi lock 950mm
9181022S5 950mm 22mm 7.8mm 5 1 1 1 £8.50 £7.20
(2 double | 1 single)
multi lock 1150mm
9181222S5 1150mm 22mm 7.8mm 5 1 1 1 £8.80 £7.40
(2 double | 1 single)

CODE DESCRIPTION PRICE
1+ 20+
9107RIGHT pair of right handed keeps £0.90 £0.86
9107LEFT pair of left handed keeps £0.90 £0.86
multilock
9007 centre keep £0.50 £0.40
left handed keeps right handed keeps centre keep
