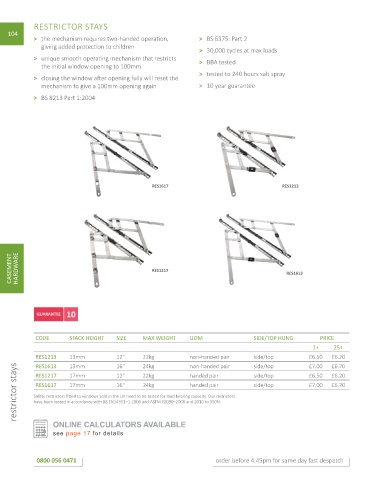

RESTRICTOR STAYS
104
> the mechanism requires two-handed operation, > BS 6375: Part 2
giving added protection to children
> 30,000 cycles at max loads
> unique smooth operating mechanism that restricts > BBA tested
the initial window opening to 100mm
> tested to 240 hours salt spray
> closing the window after opening fully will reset the
mechanism to give a 100mm opening again > 10 year guarantee

> BS 8213 Part 1:2004

RES1617 RES1213

CASEMENT HARDWARE RES1217 RES1613

CODE STACK HEIGHT SIZE MAX WEIGHT UOM SIDE/TOP HUNG PRICE
1+ 25+
RES1213 13mm 12" 22kg non-handed pair side/top £6.50 £6.20
£6.70
16"
24kg
side/top
£7.00
non-handed pair
13mm
RES1613
restrictor stays Safety restrictors fitted to windows sold in the UK need to be tested for load bearing capacity. Our restrictors side/top £6.50 £6.20
handed pair
RES1217
22kg
17mm
12"
side/top
£6.70
17mm
£7.00
RES1617
16"
handed pair
24kg
have been tested in accordance with BS EN14351–1:2006 and ASTM F2090–2008 and 2010 to 350N.
ONLINE CALCULATORS AVAILABLE
see page 17 for details
0800 056 0471 order before 4.45pm for same day fast despatch
