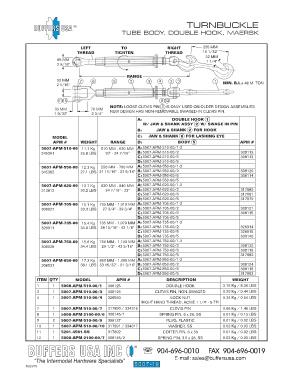

Page 107 - 2017 Lashing Catalog Web_Neat

® TURNBUCKLE
TUBE BODY, DOUBLE HOOK, MAERSK

LEFT TO RIGHT 255 MM
THREAD TIGHTEN THREAD 10 1/32"
32 MM
65 MM 1 1/4"
2 9/16"

RANGE
52 MM 7 6 5 2 9 4 2 3 1
2 1/16" MIN. B.L.: 48 M. TON

11 10 8 12
NOTE: LOOSE CLEVIS PIN 3 IS ONLY USED ON OLDER DESIGN ASSEMBLIES.
33 MM 70 MM NEW DESIGN HAS NON-REMOVABLE SWAGED-IN CLEVIS PIN.
1 9/32" 2 3/4"
A: DOUBLE HOOK 1
W/ JAW & SHANK ASSY 2 W/ SWAGE IN PIN
B: JAW & SHANK 2 FOR HOOK
MODEL C: JAW & SHANK 6 FOR LASHING EYE
APM # WEIGHT RANGE D: BODY 5 APM #
5007-APM-510-00 11.7 Kg 510 MM - 620 MM A: 5007-APM-510-00/1-2
345361 25.8 LBS 20" - 24 7/16" B: 5007-APM-510-00/2 308119
C: 5007-APM-510-00/6 308113
D: 5007-APM-510-00/5
5007-APM-550-00 12.3 Kg 550 MM - 700 MM A: 5007-APM-550-00/1-2
345362 27.1 LBS 21 11/16" - 27 9/16" B: 5007-APM-550-00/2 308120
C: 5007-APM-550-00/6 308114
D: 5007-APM-550-00/5
5007-APM-620-00 13.7 Kg 620 MM - 840 MM A: 5007-APM-620-00/1-2
313812 30.2 LBS 24 7/16" - 33" B: 5007-APM-620-00/2 317880
C: 5007-APM-620-00/6 317881
D: 5007-APM-620-00/5 317879
5007-APM-705-00 15.1 Kg 705 MM - 1,010 MM A: 5007-APM-705-00/1-2
308027 33.3 LBS 27 3/4" - 39 3/4" B: 5007-APM-705-00/2 308121
C: 5007-APM-705-00/6 308115
D: 5007-APM-705-00/5
5007-APM-735-00 15.4 Kg 735 MM - 1,070 MM A: 5007-APM-735-00/1-2
326911 34.0 LBS 28 15/16" - 42 1/8" B: 5007-APM-735-00/2 326914
C: 5007-APM-735-00/6 326915
D: 5007-APM-735-00/5 339140
5007-APM-750-00 15.6 Kg 750 MM - 1,100 MM A: 5007-APM-750-00/1-2
308028 34.4 LBS 29 1/2" - 43 5/16" B: 5007-APM-750-00/2 308122
C: 5007-APM-750-00/6 308116
D: 5007-APM-750-00/5 317882
5007-APM-850-00 17.3 Kg 850 MM - 1,300 MM A: 5007-APM-850-00/1-2
308031 38.1 LBS 33 15/32" - 51 3/16" B: 5007-APM-850-00/2 308124
C: 5007-APM-850-00/6 308118
D: 5007-APM-850-00/5 317883
ITEM QTY MODEL APM # DESCRIPTION WEIGHT
1 1 5008-APM-510-00/1 308125 DOUBLE HOOK 3.76 Kg / 8.30 LBS
3 1 5007-APM-510-00/3 308126 CLEVIS PIN, NON-SWAGED 0.20 Kg / 0.44 LBS
4 1 5007-APM-510-00/4 326550 LOCK NUT 0.24 Kg / 0.54 LBS
RIGHT HAND THREAD, ACME 1 1/4" - 5 TPI
7 1 5007-APM-510-00/7 317890 / 334316 CLEVIS PIN 0.66 Kg / 1.46 LBS
8 1 5008-APM-2100-00/6 308145/1 SPRING PIN, 6 x 28, SS 0.07 Kg / 0.15 LBS
9 2 5007-APM-510-00/9 308137 PLUG, PLASTIC 0.01 Kg / 0.02 LBS
10 1 5007-APM-510-00/10 317891 / 334317 WASHER, SS 0.03 Kg / 0.05 LBS
11 1 5201-4561-SS 317892 COTTER PIN, 6 x 50 0.01 Kg / 0.02 LBS
12 1 5008-APM-2100-00/7 308145/2 SPRING PIN, 3.5 x 28, SS 0.02 Kg / 0.05 LBS

®
