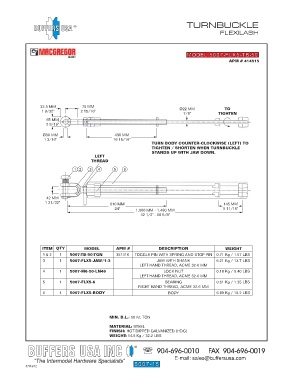

® TURNBUCKLE
FLEXILASH

MODEL 5007-FLX5-TB-50
APM # 414515

32.5 MM 75 MM Ø 22 MM TO
1 9/32" 2 15/16"
7/8" TIGHTEN
65 MM
2 9/16"
Ø 30 MM 430 MM
1 3/16" 16 15/16"
TURN BODY COUNTER-CLOCKWISE (LEFT) TO
TIGHTEN / SHORTEN WHEN TURNBUCKLE
STANDS UP WITH JAW DOWN.
LEFT
THREAD

1 2 3 4 5 6

42 MM
1 21/32" 610 MM 145 MM
24" 1,080 MM - 1,490 MM 5 11/16"
42 1/2" - 58 5/8"

ITEM QTY MODEL APM # DESCRIPTION WEIGHT
1 & 2 1 5007-TB-50-TGN 351416 TOGGLE PIN WITH SPRING AND STOP PIN 0.71 Kg / 1.57 LBS
3 1 5007-FLX5-JAW/1-3 JAW WITH SHANK 6.21 Kg / 13.7 LBS
LEFT HAND THREAD, ACME 32-6 MM
4 1 5007-M6-50-LN46 LOCK NUT 0.18 Kg / 0.40 LBS
LEFT HAND THREAD, ACME 32-6 MM
5 1 5007-FLX5-6 BEARING 0.61 Kg / 1.35 LBS
RIGHT HAND THREAD, ACME 32-6 MM
6 1 5007-FLX5-BODY BODY 6.89 Kg / 15.2 LBS

MIN. B.L.: 50 M. TON
MATERIAL: STEEL
FINISH: HOT DIPPED GALVANIZED (HDG)
WEIGHT: 14.6 Kg / 32.2 LBS

®
904-696-0010 FAX 904-696-0019
E-mail: sales@buffersusa.com
5007-15
07/03/12
