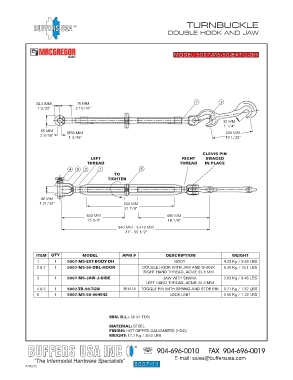

® TURNBUCKLE
DOUBLE HOOK AND JAW

MODEL 5007-M5-50-EXT/J-DH

32.5 MM 75 MM 7 2
1 9/32" 2 15/16"

32 MM
1 1/4"
65 MM Ø 30 MM 255 MM
2 9/16" 1 3/16" 10 1/32"

CLEVIS PIN
LEFT RIGHT SWAGED
THREAD THREAD IN PLACE
4 5 3 1 6
TO
TIGHTEN

42 MM
1 21/32" 555 MM
21 7/8"
400 MM 460 MM
15 3/4" 18 1/8"
940 MM - 1,410 MM
37" - 55 1/2"

ITEM QTY MODEL APM # DESCRIPTION WEIGHT
1 1 5007-M5-EXT-BODY-DH BODY 4.35 Kg / 9.60 LBS
2 & 7 1 5007-M5-50-DBL-HOOK DOUBLE HOOK WITH JAW AND SHANK 8.20 Kg / 18.1 LBS
RIGHT HAND THREAD, ACME 32-6 MM
3 1 5007-M5-JAW-J-SIDE JAW WITH SHANK 3.83 Kg / 8.45 LBS
LEFT HAND THREAD, ACME 32-6 MM
4 & 5 1 5007-TB-50-TGN 351416 TOGGLE PIN WITH SPRING AND STOP PIN 0.71 Kg / 1.57 LBS
6 1 5007-M5-50-004543 LOCK UNIT 0.60 Kg / 1.32 LBS

MIN. B.L.: 50 M. TON
MATERIAL: STEEL
FINISH: HOT DIPPED GALVANIZED (HDG)
WEIGHT: 17.7 Kg / 39.0 LBS

®
